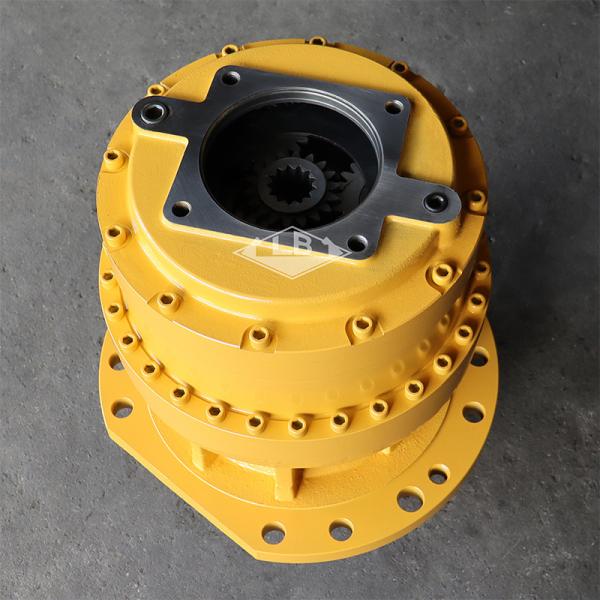

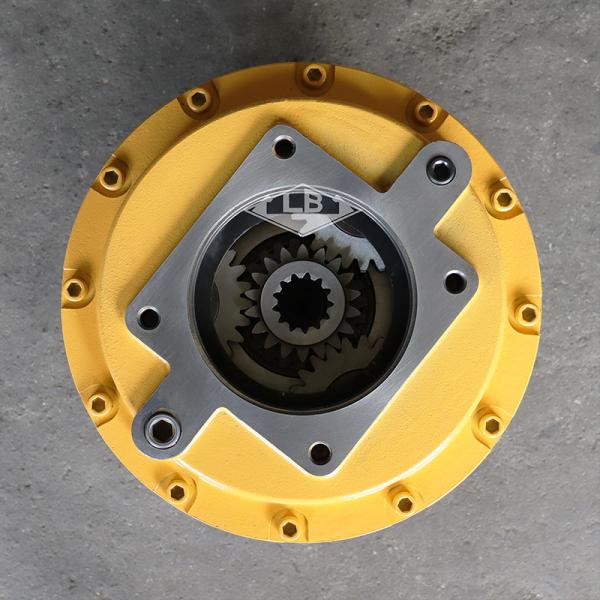

E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
Specifications
Description

E 418-7155 470-0474 E349D2 Swing drive E349D2 Swing gearbox

PRODUCT PARAMETERS
Part name E 349D2 Swing gearbox
Equipment Apply to E EXCAVATOR
Part no. 418-7155 470-0474
NO.1 sun gear spline teeth 13 splines
Swing pinion shaft teeth 12 T
Item condition New
Logo LB
Gross weight
MOQ 1 pc

Product Description

E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2

Parts for your 349D2 EXCAVATOR:

E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
Pos. Part No Qty Parts name Comments
1. 4H-6112 [1] BREATHER (SWING DRIVE)
2. 6V-7238 [1] VALVE-SHUTOFF
3. 7Y-0597 [1] SPACER-SPECIAL
4. 094-0611 [14] WASHER (47.3X76X1-MM THK)
5. 114-1398 [1] GAUGE-OIL LEVEL (SWING DRIVE)
6. 114-1399 [1] PIPE-GAUGE
7. 114-1403 [1] CAGE
8. 227-6108 [1] SHAFT-PINION
9. 227-6215 [1] BOSS (1/4-18-THD)
10. 296-6268 [3] BEARING AS-ROLLER
11. 418-7160 [1] GEAR-SUN (13-TEETH, 18-TEETH)
12. 418-7161 [1] GEAR-SUN (23-TEETH)
13. 418-7162 [3] GEAR-PLANETARY (25-TEETH)
14. 418-7163 [4] GEAR-PLANETARY (22-TEETH)
15. 418-7164 [1] GEAR-RING (69-TEETH)
16. 418-7167 [4] SHAFT
17. 418-7232 [1] COVER-HOUSING
18. 418-7233 [8] BEARING AS-ROLLER
19. 418-7234 [1] CARRIER AS
20. 418-7235 [1] CARRIER-PLANETARY
21. 422-1352 [2] SPACER (49.6X69.5X6-MM THK)
22. 422-4054 [3] RING-RETAINING
23. 451-2182 [52] WASHER-HARD (13.5X25.5X3-MM THK)
24. 453-3446 M [1] BOLT (M12X1.75X35-MM)
25. 453-3447 M [20] BOLT (M12X1.75X40-MM)
26. 456-0784 [1] HOUSING
27. 486-7828 [1] HOSE AS
28. 093-1730 [2] RING-RETAINING
29. 095-0670 M [30] BOLT (M12X1.75X45-MM)
30. 509-6676 [4] PIN-SPRING
31. 095-1806 [1] BEARING-ROLLER
32. 096-2653 [1] RING-RETAINING
33. 096-4339 [1] BEARING AS-ROLLER
34. 135-9044 [2] SEAL-LIP TYPE
35. 136-2803 [2] CLIP
36. 3K-0360 [1] SEAL-O-RING
37. 5P-2235 [1] SEAL-O-RING
38. 7D-5363 [2] CONNECTOR (9/16-18-THD)
39. 8T-4244 M [1] NUT (M12X1.75-THD)
