Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
350
machining capacity :
Heavy Duty
max. weight of workpiece(kg) :
cnc lathe
width of bed (mm) :
35 mm
no. of spindles :
Single
number of axes :
3
travel (x axis)(mm) :
250 mm
travel (z axis)(mm) :
350 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
place of origin :
Guangdong, China
dimension(l*w*h) :
2350*1500*1850
brand name :
LBIE
model number :
L3C-8TW
voltage :
380V
cnc control system :
Symtec
tool post stations :
12, 8
weight (kg) :
3000
warranty :
1 Year
key selling points :
High cost-effectiveness
machinery test report :
please consult
video outgoing-inspection :
please consult
range of spindle speed(r.p.m) :
0 - 4000 r.p.m
cutting torque :
86 N.m
Turret Driven Type :
Servo Motor
Turret Locking Type :
Hydraulic
Frequency :
50
Rapid Feedrate :
22m/min
Lubrication Form :
Oil lubrication
Hydraulic System :
3 Channels
Fixture :
Hydraulic Chuck
Coolant Pump Power :
370W
Spindle Bore(mm) :
51
Max. Spindle Speed (r.p.m) :
3500
Warranty of core components :
1 Year
Description
CNC lathe turning center Y axis with live tool Servo Turret CNC Machining Service Lathe Machine


CNC lathe turning center Y axis with live tool Servo Turret CNC Machining Service Lathe Machine

Decribe

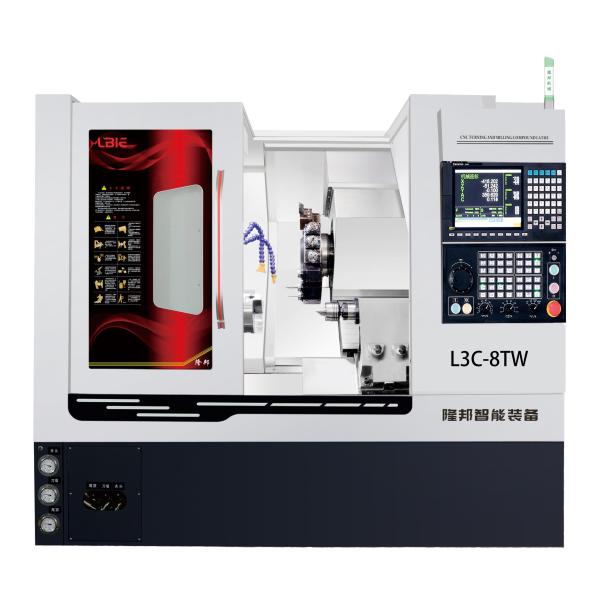

The L3C-8TW is a high-precision, multi-functional turning-milling compound machine designed for advanced machining applications. Equipped with a servo-driven turret and an adjustable tailstock, this machine offers exceptional flexibility, accuracy, and efficiency for complex part manufacturing.
