Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
350
machining capacity :
Heavy Duty
max. weight of workpiece(kg) :
cnc lathe
width of bed (mm) :
35 mm
no. of spindles :
Single
number of axes :
4
travel (x axis)(mm) :
250 mm
travel (z axis)(mm) :
350 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
place of origin :
Guangdong, China
dimension(l*w*h) :
2350*1500*1850 mm
brand name :
LBIE
model number :
L3C-8DW
voltage :
380 V

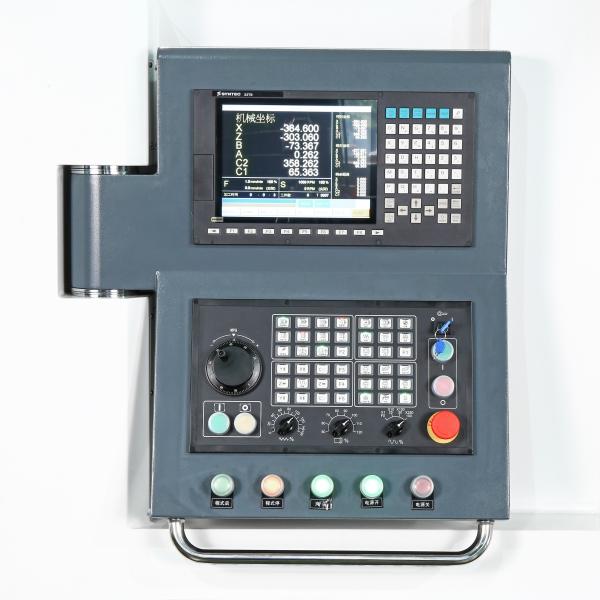

cnc control system :
FANUC\Syntec
tool post stations :
12, 15
weight (kg) :
3000
warranty :
1 Year
key selling points :
High Rigidity
machinery test report :
please consult
video outgoing-inspection :
please consult
range of spindle speed(r.p.m) :
0 - 4000 r.p.m
cutting torque :
86 N.m
Rapid Feedrate :
22m/min
Max. Live Tool Speed :
4000rpm
Tailstock Form :
Hydraulic TailStock
Lubrication Form :
Oil lubrication
Hydraulic System :
4 Channels
Fixture :
Hydraulic Chuck
Coolant Pump Power :
370W
Condition :
New
Spindle Bore(mm) :
51
Max. Spindle Speed (r.p.m) :
3500
Warranty of core components :
1 Year
Description
Heavy Duty Torno Cnc Machine Cnc Lathe Live Tools Torno Pequeno Cnc De 4 Ejes Automatic Lathes Machine


High Precision Industrial Horizontal Slant Bed Turning CNC Lathe Factory price 3 axis Metal Machine
Describe
The L3C-8ZYDW is a turning-milling compound machine . This setup supports multi-axis machining, integrating both turning and milling functions in one operation. The 12 POSITIONS TURRET offers versatility for handling complex machining needs, boosting productivity and accuracy. This machine is well-suited for manufacturing detailed components that require combined turning and milling capabilities.
Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels
