Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
350
machining capacity :
Heavy Duty
max. weight of workpiece(kg) :
cnc lathe
width of bed (mm) :
35 mm
no. of spindles :
Single
number of axes :
5
travel (x axis)(mm) :
250 mm
travel (z axis)(mm) :
350 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
place of origin :
Guangdong, China
dimension(l*w*h) :
2300*1550*2000
brand name :
LBIE
model number :
L3C-8ZYDW
voltage :
380V
cnc control system :
FANUC\Syntec
tool post stations :
12, 15
weight (kg) :
4000
warranty :
1 Year
key selling points :
High cost-effectiveness
machinery test report :
Consult us
video outgoing-inspection :
Consult us
range of spindle speed(r.p.m) :
0 - 4000 r.p.m
cutting torque :
86 N.m
Lubrication Form :
Oil lubrication
Hydraulic System :
4 Channels
Tailstock Form :
Hydraulic TailStock
Rapid Feedrate :
22m/min
CNC or Not :
CNC
Turret Driven Type :
Servo Motor
Max. Live Tool Speed :
4000rpm
Showroom Location :
None
Spindle Bore(mm) :
51
Max. Spindle Speed (r.p.m) :
3000
Warranty of core components :
1 Year
Description
CNC lathe Milling Machining parts Equipment Center Automatic Power Tool Turret Slant Bed cnc lathes machine​


best selling sale cnc lathe Horizontal Flat Bed High Speed Precision Linear Guide Way CNC Turning Machine Metal Lathe


Decribe

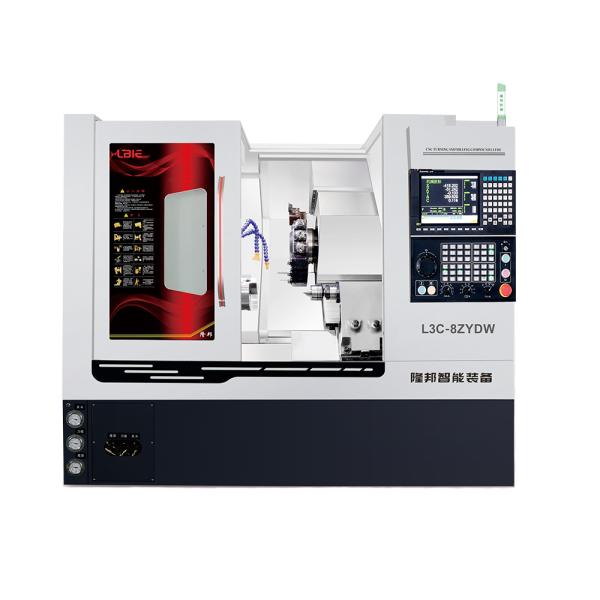

The L3C-8ZYDW is a high-performance turning-milling machine featuring a power-driven tool turret, orthogonal Y-axis, and adjustable tailstock. Perfect for complex tasks, it’s compatible with Syntec, FANUC, Siemens, and GSK systems.

Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels
