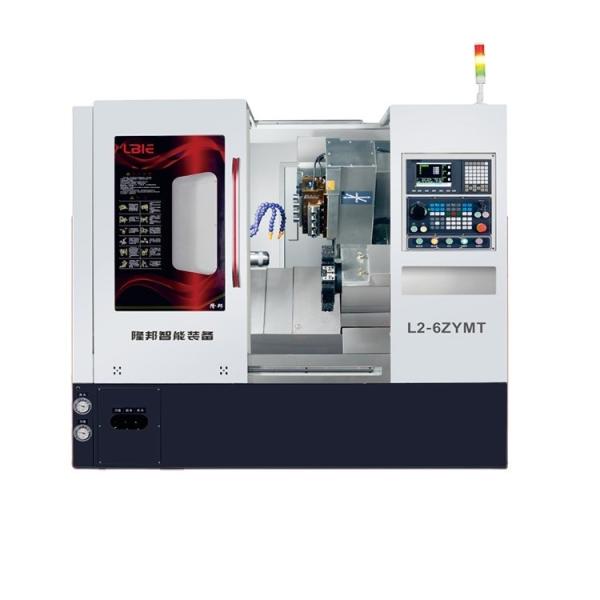

Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
200
machining capacity :
Heavy Duty
max. weight of workpiece(kg) :
cnc lathe
width of bed (mm) :
35 mm
no. of spindles :
Single
number of axes :
5
travel (x axis)(mm) :
800 mm
travel (z axis)(mm) :
300 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
place of origin :
Guangdong, China
dimension(l*w*h) :
2230*1687*1900
brand name :
LEIE
model number :
L2-6ZYDT
voltage :
380

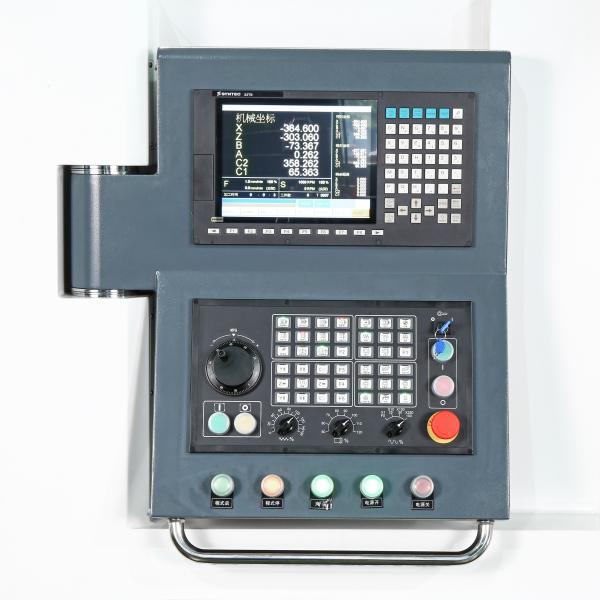

cnc control system :
FANUC\Syntec
tool post stations :
12, 8
weight (kg) :
2500
warranty :
1 Year
key selling points :
Four plus Four Live Tool
machinery test report :
please consult
video outgoing-inspection :
please consult
range of spindle speed(r.p.m) :
0 - 4000 r.p.m
cutting torque :
105 N.m
Tool Carrier Form :

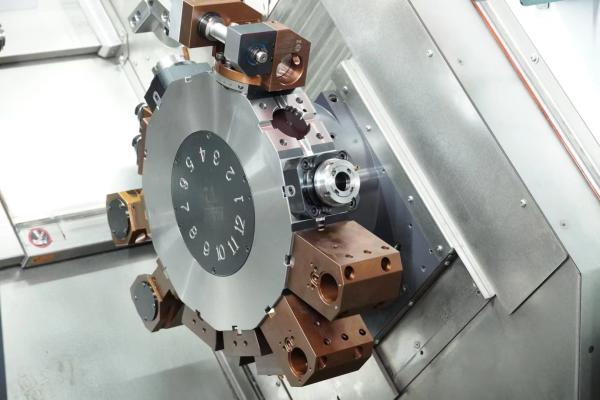

4+4 Live Tool And Normal Turret
Turret Locking Type :
Hydraulic
Turret Driven Type :
Servo Motor
Lubrication Form :
Oil lubrication
Hydraulic System :
3 Channels
Fixture :
Hydraulic Chuck
Max. Live Tool Speed :
4000 rpm
Rapid Feedrate :
22 m/min
Spindle Bore(mm) :
45
Max. Spindle Speed (r.p.m) :
4500
Warranty of core components :
1 Year
Description

CNC Lathe Motorized Tool Metalworking Turning Universal Metal Lathe Machine Machining Horizontal Lathe


Describe

4+4 driven tool and servo turret equipped turning-milling composite machine represents a leap forward in multifunctional machining solutions. By combining high-speed performance, precision, and versatility with top-tier control system options, it offers manufacturers an unparalleled tool for achieving excellence in production. For detailed insights into technical specifications and operational guidelines, referencing the official product documentation or reaching out directly to the manufacturer is advisable.


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels
Products Description
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
Universal High Accuracy Vertical Turn Mill Center Swiss Type Automatic Lathe
