Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
200
machining capacity :
Heavy Duty
max. weight of workpiece(kg) :
CNC LATHE
width of bed (mm) :
35 mm
no. of spindles :
Single
number of axes :
5
travel (x axis)(mm) :
800 mm
travel (z axis)(mm) :
300 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
place of origin :
Guangdong, China
dimension(l*w*h) :
2200*1750*2000
brand name :
LBIE
model number :
L5-6ZYDP
voltage :
380v
cnc control system :
FANUC\Syntec
tool post stations :
12, 15
weight (kg) :
3000
warranty :
1 Year
key selling points :
High cost-effectiveness
machinery test report :
please consult
video outgoing-inspection :
please consult
range of spindle speed(r.p.m) :
0 - 22 r.p.m
cutting torque :
105 N.m
Lubrication Form :
Oil lubrication
Fixture :
Hydraulic Chuck
Hydraulic System :
3 Channels
Coolant Pump Power :
370W
Tool Carrier Form :
Live Tool Turret
Rapid Feedrate :
22 m/min
Spindle Bore(mm) :
45
Max. Spindle Speed (r.p.m) :
4500
Feed Speed(mm/min) :
0 - 0.3 mm/min
Rapid Feed Speed(mm/min) :
0 - 22 mm/min
Warranty of core components :
1 Year
Description

High Precision Metal Turning Y axis CNC Lathe Machine Horizontal Flat Bed 3 axis CNC Lathe


Description

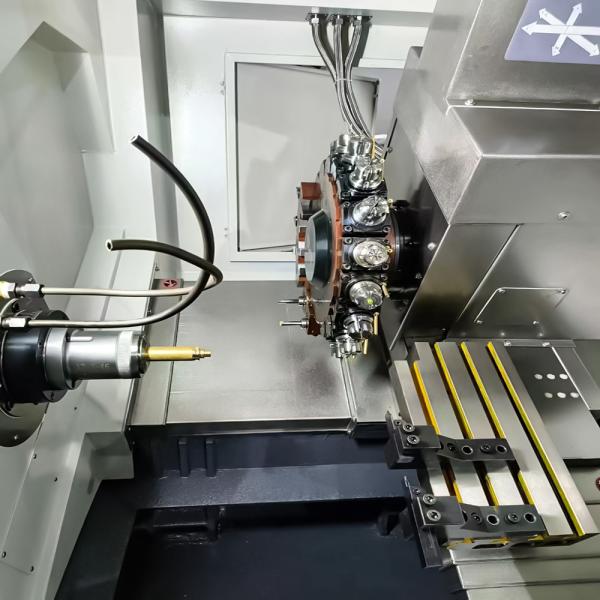

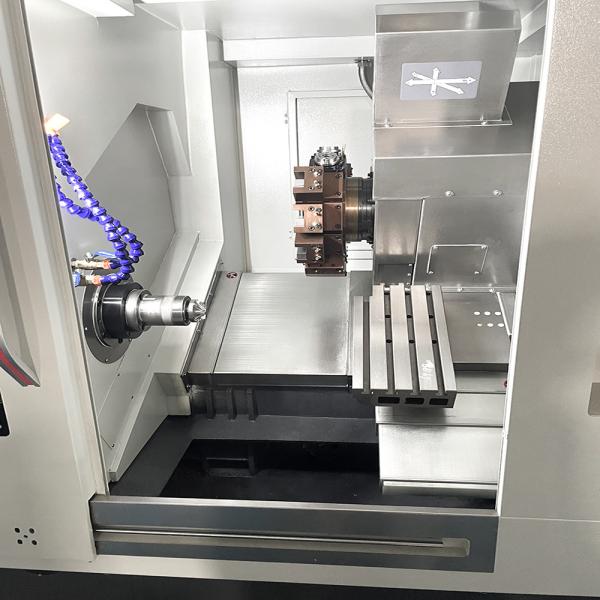

The L5-6ZYD represents a cutting-edge CNC turning solution, featuring an orthogonal Y-axis configuration combined with a powerful live tool turret and upper tool post arrangement.

This innovative design integrates radial and axial machining capabilities, enabling complex multi-operation processing in a single setup. The machine's orthogonal Y-axis provides enhanced machining flexibility, particularly for off-center operations and intricate contouring tasks, while the live tooling system facilitates advanced milling and drilling operations, without workpiece repositioning.


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
3 Channels
Products Description
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
Metal Y Axis Sub Spindle Lathe Cnc Horizontal Lathe Machine 380v
