Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
model number :
TS-8/6ZYD/D
voltage :
380V
cnc control system :
FANUC\Syntec
tool post stations :
24
weight (kg) :
6000
warranty :
1 Year
key selling points :
high-performance
Turret Driven Type :
Servo Motor
Turret Locking Type :
Hydraulic
Description

Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor


Description

Equipped with dual spindles and dual Y-axis turrets, the TS-8/6ZYD/D CNC machine is designed for precision and productivity. It can perform machining operations with either one turret or both turrets simultaneously, supporting dual workpiece processing. The machine’s HT300 cast iron structure ensures superior rigidity and stability, making it ideal for complex, high-output manufacturing.

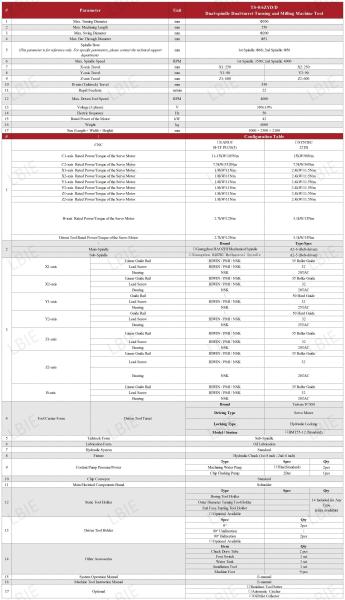

Specification

Parameter Unit TS-8/6ZYD/D
Dual-spindle Dual-turret Turning and Milling Machine Tool
Max. Turning Diameter mm Φ200
Max. Machining Length mm 550
Max. Swing Diameter mm Φ200
Bar Feeding Diameter mm <Φ52
Spindle Bore mm 1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed RPM 1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel mm X1: 250 ; X2: 250
Y-axis Travel mm Y1:90 ; Y2:90
Z-axis Travel mm Z1:600; Z2:600
B-axis (Tailstock) Travel mm 550


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels


Products Description
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
Details Display
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor

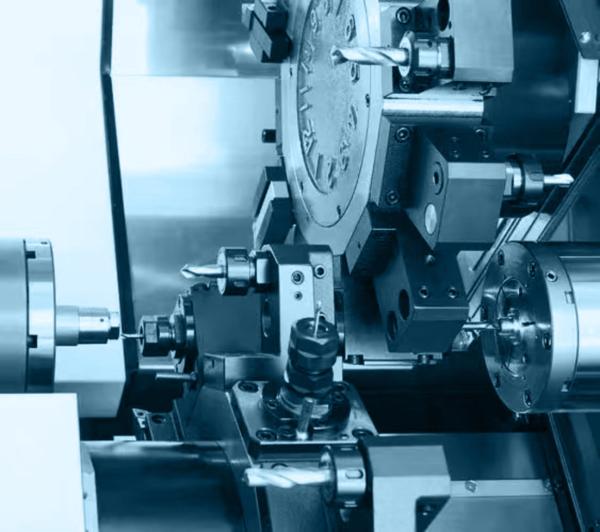

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor


Equipment Display
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
Slant Bed Double Head Vertical Turning Lathe For Metal Servo Motor
