Specifications
Price :
Contact Us
MOQ :
1
Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
brand name :
LBIE
model number :
TS-8/6ZYD/D
voltage :
380V
cnc control system :
FANUC\Syntec
tool post stations :
24
weight (kg) :
6000
warranty :
1 Year
Coolant Pump Power :
700W
Condition :
New
Showroom Location :
None
Warranty of core components :
1 Year
Year :
latest date
Max. Spindle Speed (r.p.m) :
3500 r.p.m
Spindle Bore(mm) :
51
Description

Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis


Description

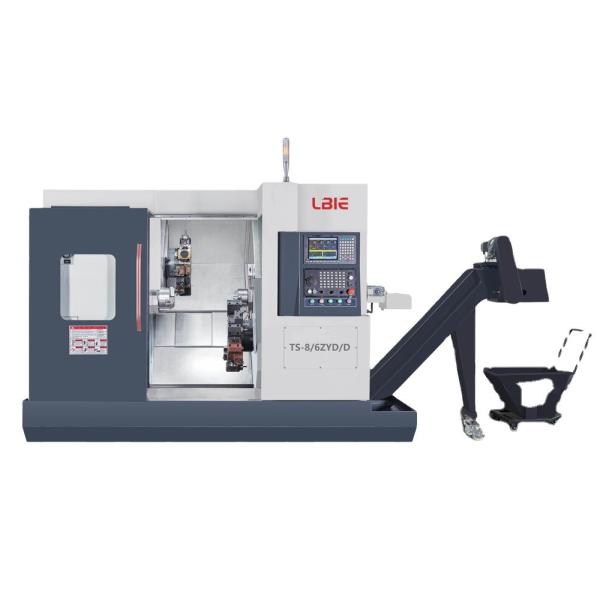

The TS-8/6ZYD/D is a high-precision dual-spindle, dual-turret CNC turning and milling machine. Its flexible mode selection allows either single or simultaneous dual-turret operations, supporting two-part machining at once. Built with HT300 cast iron, it offers superior rigidity and stability for complex and high-output production.


Specification

Parameter Unit TS-8/6ZYD/D
Dual-spindle Dual-turret Turning and Milling Machine Tool
Max. Turning Diameter mm Φ200
Max. Machining Length mm 550
Max. Swing Diameter mm Φ200
Bar Feeding Diameter mm <Φ52
Spindle Bore mm 1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed RPM 1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel mm X1: 250 ; X2: 250
Y-axis Travel mm Y1:90 ; Y2:90
Z-axis Travel mm Z1:600; Z2:600
B-axis (Tailstock) Travel mm 550


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels


Products Description
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
Details Display
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis

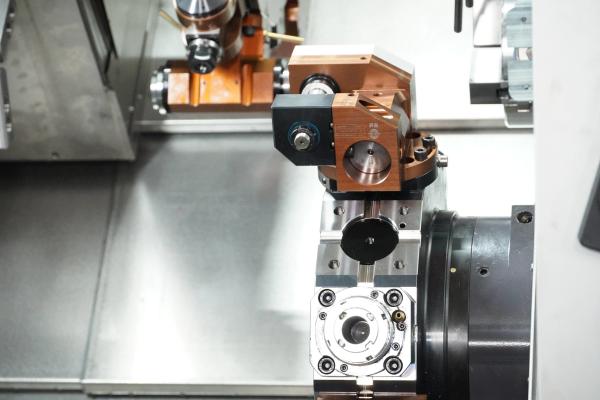

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis


Equipment Display
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
Twin Turrets CNC Horizontal Lathe Machine Dual Spindle Lathe With Y Axis
