Specifications
Price :
Contact Us
MOQ :
1

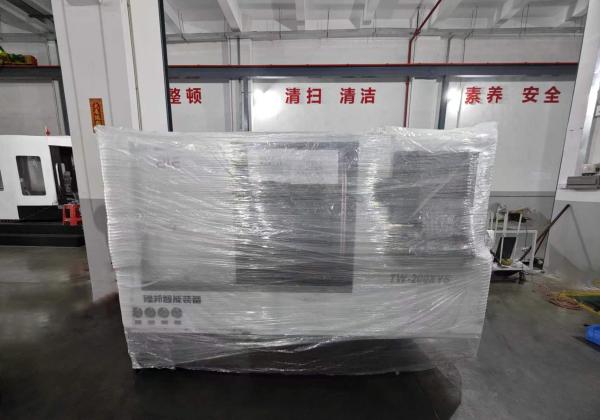

Packaging Details :
wooden box package
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
20 units/month
type :
TURNING CENTER
max. length of workpiece (mm) :
550
machining capacity :
Heavy Duty
width of bed (mm) :
35 mm
spindle motor power(kw) :
14KW
no. of spindles :
Twin
number of axes :
8
travel (x axis)(mm) :
250 mm
travel (z axis)(mm) :
600 mm
positioning accuracy (mm) :
±0.003
repeatability (x/y/z) (mm) :
±0.003
dimension(l*w*h) :
3000*2300*2100
No.of Tool Stations :
2*12
Tailstock Form :
Sub-spindle
Description

Description

The TS-8/6ZYD/D is an advanced dual-spindle, dual-turret, dual-Y-axis CNC machine designed to optimize machining efficiency and precision. It supports both single-turret and dual-turret operations, enabling simultaneous machining of two workpieces for increased productivity. The HT300 cast iron bed provides outstanding rigidity, minimizing vibration and ensuring stable, high-accuracy performance. This machine is ideal for demanding production environments requiring both flexibility and high output.

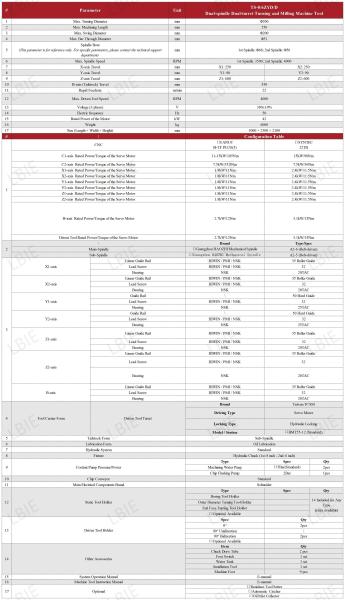

Specification

Parameter Unit TS-8/6ZYD/D
Dual-spindle Dual-turret Turning and Milling Machine Tool
Max. Turning Diameter mm Φ200
Max. Machining Length mm 550
Max. Swing Diameter mm Φ200
Bar Feeding Diameter mm <Φ52
Spindle Bore mm 1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed RPM 1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel mm X1: 250 ; X2: 250
Y-axis Travel mm Y1:90 ; Y2:90
Z-axis Travel mm Z1:600; Z2:600
B-axis (Tailstock) Travel mm 550


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels


Products Description
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power
Details Display
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power
The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power
The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power
The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power

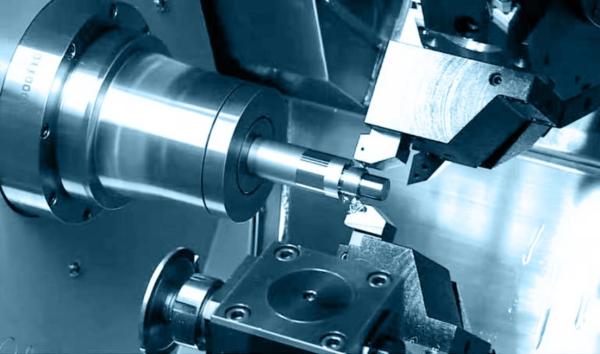

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
GSK Multifunctional Dual Spindle Dual Turret Lathe 3 Axis 14KW Spindle Motor Power

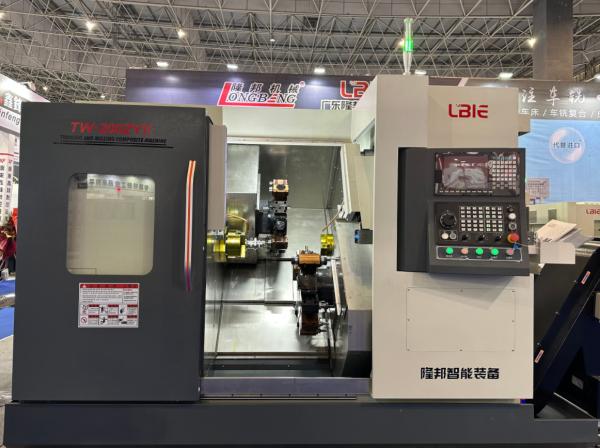

Equipment Display
