Large Multifuncation LCD Interactive Touch Screen All In One PC
Large Multifuncation LCD Interactive Touch Screen All In One PC
Large Multifuncation LCD Interactive Touch Screen All In One PC
Large Multifuncation LCD Interactive Touch Screen All In One PC
Specifications
Brand Name :
YODA
Model Number :
Y65AIO/TS-A01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 25 days after order upon payment receiving
Packaging Details :
Ply-wood Box,foam in the Carton Box/ Honeycomb Box
Size :
65 inch
Application :
Indoor
Service Lifetime :
≥60,000 hours
Power Consumption :
220W~500W
Type :
TFT
Color Depth :
16.7M
Resolution :
3840*2160P
Warranty :
12 Months
Description

Large Multifuncation LCD Interactive Touch Screen All In One PC

Details of product:
1. UHD 4K High resolution, display content clearly visible.
2. Display quality ranges from the simplest monochrome character graphics to video displays of various specifications with high resolution, high color fidelity, high brightness, high contrast and high response speed.
3. Standby all day long, no worry about Lifespan.
4. With teleconference function, can support 20 people at the same time,And mobile phone terminal and computer terminal can be carried out.
5. The machine itself comes with 5G hotspots.
6. Customizable appearance and logo.
7. Operating temperature can be controlled at -20°C~+50°C.
8. The appearance design is very thin, the touch use effect is good.

Display Information
Screen Size 55inch 65inch 75inch 86inch
Panel Type a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD
Aspect Ratio 16:9 16:9 16:9 16:9
Resolution 3840*2160P 3840*2160P 3840*2160P 3840*2160P
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Brightness 320cd/m2 350cd/m2 350cd/m2 350cd/m2
Active Area 1209.6x 680.4mm 1428.48x803.52mm 1649.664x927.936mm 1913x1084mm
Contrast Ratio 4000:1 4000:1 1200:1 1200:1
Response Time 8ms 8ms 8ms 8ms
Display Color 8 bit 1.67M 8 bit 1.67M 10 bit 1.07B 10 bit 1.07B
Field Frequency 60Hz 60Hz 60Hz 60Hz
Service Lifetime ≥60,000 hours ≥60,000 hours ≥60,000 hours ≥60,000 hours

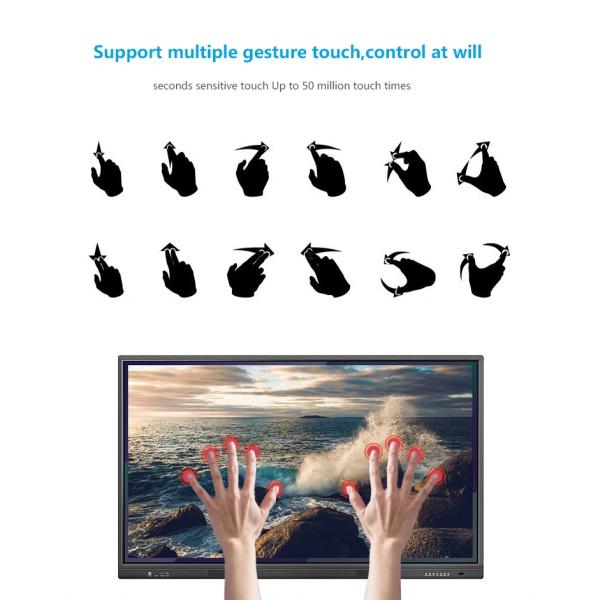

Touch System
Sensing Type Infrared System (Multi 10 point touch)
Response Time 6ms
Connection Full-speed USB (Driver free)
Surface Protection Tempered Glass with 4mm thickness Standard
Graphic card Intel HD Graphics, Supports 1080P, H264, 3D play
Bluetooth Bluetooth4.0
Speaker 15W x2
Network WIFI/ RJ45
Port USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating System Android 6.0
CPU Quad Core Cortex A7 1.8 GHZ
RAM DDR3 2G
ROM 32G
SD card slot Support MAX 128G
Port RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
Languages English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply 96~264V AC, 50/60Hz
Power Consumption 220W~500W
Operating Temperature 0℃~50℃
Storage Temperature -10℃~70℃
Supplied Accessories AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H) 1290.5*817.6*99.3mm 1516.3*947.1*96mm 1737.7*1072.6*103mm 1991.1x1212.6x125.6mm
Package L*W*H 1427*963*232mm 1646*1062*230mm 1860*1230*260mm 2136*1370x280mm
Net weight 40KG 50KG 68KG 76KG

Real-picture

Large Multifuncation LCD Interactive Touch Screen All In One PC

Product's details

Large Multifuncation LCD Interactive Touch Screen All In One PC

Application

Large Multifuncation LCD Interactive Touch Screen All In One PC

FAQ

Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.

Q:What kind of design and development capabilities do you have?

A:artwork/ Instruction manual/ product design according to customer's requirement.

Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.

Q:What brand of screen is used?

A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design with Tempered Glass Surface.

Q:Can you put my brand name (logo) on these product?
A:Yes. We can provide professional OEM services.Our campany accepts to make the logo free for bulk orders.

Q:How long is the warranty period of the product?

A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.

Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.
