Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time
Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time
Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time
Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time
Specifications
Brand Name :
YODA
Model Number :
Y43LDS-A01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 7~15 days after order upon payment receiving
Packaging Details :
Plywood Case / Honeycomb Box / Flight Case
Size :
43inch
Application :
Indoor
Viewing Angle :
89°(U) / 89°(D) / 89°(L) / 89°(R)
Working Life :
More than 6000hrs
Number of Pixels :
1920*1080P
Contrast Ratio :
1200:1
System Type :
Android OS
Warranty :
1 Year
Description

Indoor Touch Screen Advertising Displays Wall Mounting Vertical LCD Advertising Display

Details of product :
1. Many specifications and models, size series, variety, convenient and flexible use, maintenance, update, upgrade easy, long service life.
2. Fast response time, fast and smooth use.
3. Standby all day long, no worry about Lifespan.
4. Low voltage applications, low drive voltage, solid use safety and reliability improvement.
5. E-LED backlight, energy saving, high brightness, clear image.
6. Explosion-proof glass, protecting passerby and LCD panel.
7. Sensitive touch box, click < 8ms, continuous writing < 3ms.
8. Video format is supported PAL/NTSC.

LCD
Brand BOE
Panel Type a-Si TFT open cell and LED backlight
Application Indoor
Panel Size 43"
Display Colors 8- bit, 16.7M
Number of Pixels 1920×1080P
Viewing Angle 89°(U) / 89°(D) / 89°(L) / 89°(R)
Luminance of White 380 cd/m²
Working Life More than 6000hrs
Touch Screen
Technology Infrared System ( IR touch)
Touch Points 10 point
Accuracy Less than 2.5mm
Resolution 25ppi(Min.)
Cover Glass 4～6mm,hardness more than 7 mohs
Android OS
OS Android OS
CPU RK3288
RAM 2GB
Storage 8GB
TF card slot Support MAX 32G
Video Output HDMI Video Output
Audio Output Dual-channel stereo audio output
Network LAN(RJ45)
External Interfaces USB 2.0 × 2,RJ45(LAN) × 1
Internal Interfaces

Earphone Output × 1,USB 3.0 Type-A × 1,Micro SD × 1,USB Type-C OTG× 1
RTC Support
Language English (United States Default, Multi-language supported)
External Camera Module
Dynamic Resolution 1920×1080
Image Pixel 200W
Integration Microphone Support
Focus Mode Manual focusing
Mounting Side direction with machine

The Real-picture of the Wall Mounted Digital Dispaly


Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time

The Product's details of the Wall Mounted Digital Dispaly

Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time

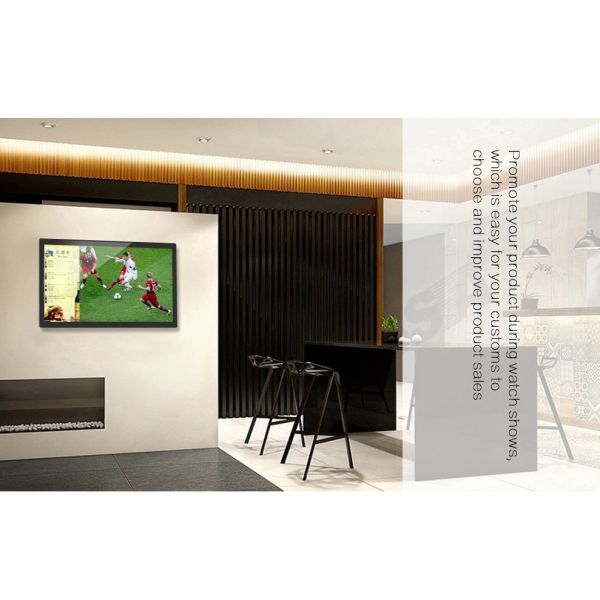

The Application of the Wall Mounted Digital Dispaly

Vertical LCD Touch Screen Advertising Displays Android OS System Fast Response Time

FAQ


Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.

Q:What brand of screen is used?

A:All our screen adopt A+ BOE panel , Durable Aluminum Frame Design with Tempered Glass Surface.

Q:What are your advantages?

A:We have our own ERP systems : Shorten lead times at low cost with responsive production planning.

Q:Can I customize the product I ordered?
A:Absolutely yes, customization offer from customers are most welcome in our company.

Q:How does your manufacturer do regarding quantity control?
A:Quantity is priority. Our manufacturer has gained CE , Rosh, FCC authentication etc.


Q:How long is the warranty period of the product?

A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.

Q:What is your package box?
A:Stand are packaged using Honeycomb boxes, wood pallets or flight case,depending on what is required.
