Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network
Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network
Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network
Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network
Specifications
Brand Name :
YODA
Model Number :
Y55AIO/TS-AP01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 25 days after order upon payment receiving
Packaging Details :
Ply-wood Box,foam in the Carton Box/ Honeycomb Box
Size :
65 inch
Dimension :
1290.5mm*817.6mm*99.3mm
Opening System :
Android and windows dual system
Network :
WIFI/ RJ45
Brand :
BOE/SAM/LG
Response time :
6ms
Panel Type :
a-Si TFT-LCD
Warranty :
1 year
Description

55 Inch Smart Digital Whiteboard LCD Interactive Touch Screen All In One PC


Details of product:
1. Sensitive touch box, click < 8ms, continuous writing < 3ms.
2. Strong touch compatibility, support multi - point operation protocol, multi - person simultaneous writing, etc.
3. Display large amount of information,Easy to color.
4. The machine has multiple interfaces, such as Earphone Output × 1,USB 3.0 type-a × 1,Micro SD × 1, and USB type-c OTG × 1.
5. The supported image formats are JPG,BMP,PNG, and GIF.
6. Operating temperature can be controlled at -20°C~+50°C.
7. Liquid crystal materials are organic polymer synthesis materials with high purity.
8. Switch between single and multi-touch modes.

Display Information
Screen Size 55inch 65inch 75inch 86inch
Panel Type a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD
Aspect Ratio 16:9 16:9 16:9 16:9
Resolution 3840*2160P 3840*2160P 3840*2160P 3840*2160P
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Brightness 320cd/m2 350cd/m2 350cd/m2 350cd/m2
Active Area 1209.6x 680.4mm 1428.48x803.52mm 1649.664x927.936mm 1913x1084mm
Contrast Ratio 4000:1 4000:1 1200:1 1200:1
Response Time 8ms 8ms 8ms 8ms
Display Color 8 bit 1.67M 8 bit 1.67M 10 bit 1.07B 10 bit 1.07B
Field Frequency 60Hz 60Hz 60Hz 60Hz
Service Lifetime ≥60,000 hours ≥60,000 hours ≥60,000 hours ≥60,000 hours
Touch System
Sensing Type Infrared System (Multi 10 point touch)
Response Time 6ms
Connection Full-speed USB (Driver free)
Surface Protection Tempered Glass with 4mm thickness Standard
Graphic card Intel HD Graphics, Supports 1080P, H264, 3D play
Bluetooth Bluetooth4.0
Speaker 15W x2
Network WIFI/ RJ45
Port USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating System Android 6.0
CPU Quad Core Cortex A7 1.8 GHZ
RAM DDR3 2G
ROM 32G
SD card slot Support MAX 128G
Port RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
Languages English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply 96~264V AC, 50/60Hz
Power Consumption 220W~500W
Operating Temperature 0℃~50℃
Storage Temperature -10℃~70℃
Supplied Accessories AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H) 1290.5*817.6*99.3mm 1516.3*947.1*96mm 1737.7*1072.6*103mm 1991.1x1212.6x125.6mm
Package L*W*H 1427*963*232mm 1646*1062*230mm 1860*1230*260mm 2136*1370x280mm
Net weight 40KG 50KG 68KG 76KG

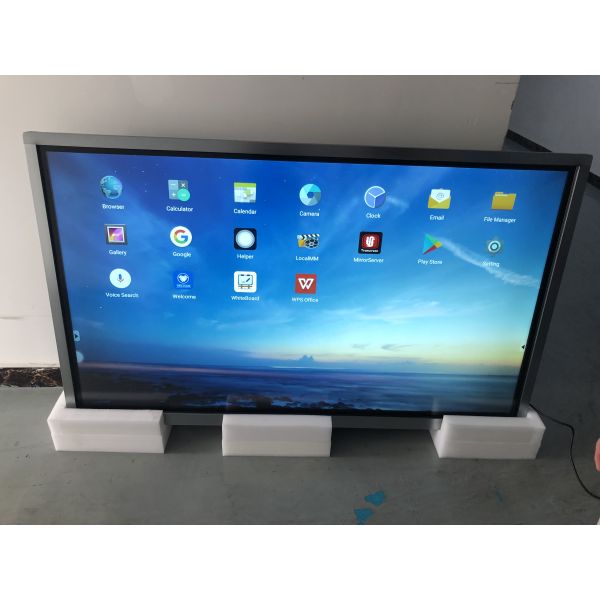

Real-picture

Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network

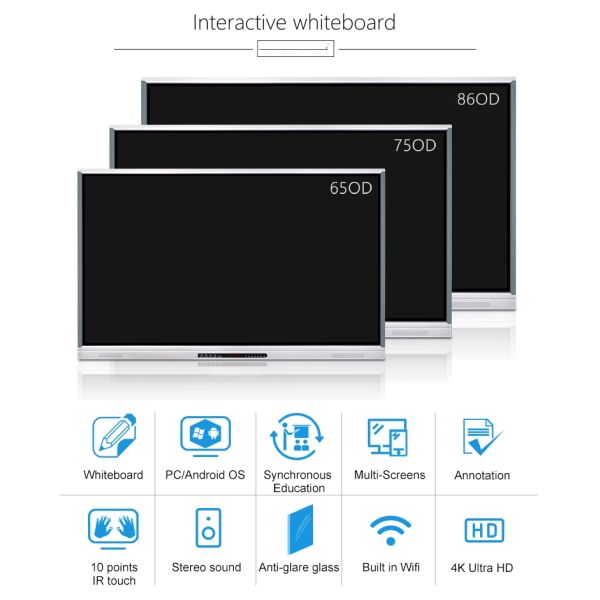

Product's details

Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network

Application


Smart Digital Whiteboard LCD Interactive Touch Screen 55'' WIFI/ RJ45 Network

FAQ


Q:Are you a Manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.

Q:What are your exporting countries?

A:More than 30 countries including Dubai,American,Germany,Poland,South Korea,Thailand,Vietnam,etc.


Q:What are your advantages?

A:We have our own ERP systems : Shorten lead times at low cost with responsive production planning.

Q:What brand of screen is used?

A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design with Tempered Glass Surface.

Q:What is the company's business philosophy?

A:Quality first, service first.


Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.


Q:What is the shipping package?

A:Strong bubble bag+carton+wooden case/3mm Honeycomb box. Transport breakage rate is less than 1%.
