A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room
A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room
A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room
A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room
Specifications
Brand Name :
YODA
Model Number :
Y75AIO/TS-AP01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 25 days after order upon payment receiving
Packaging Details :
Ply-wood Box,foam in the Carton Box/ Honeycomb Box
Size :
75 inch
Dimension :
1290.5mm*817.6mm*99.3mm
Field Frequency :
60Hz
Opening time :
6ms
Brand :
BOE/SAM/LG
Response time :
6ms
Panel Type :
a-Si TFT-LCD
Warranty :
1 year
Description

LCD Interactive Touch Screen 75Inch Touch Screen Monitor For Meeting Room


Details of product:
1. The 10 point-touch function can be used by many people at the same time.
2. Firm and durable case, made of Metal or Aluminium plate.
3. Support USB playback, support hot plug, content update convenient and fast.
4. Intelligent blackboard recognition function.
5. The appearance design is very thin, the touch use effect is good.
6. E-LED backlight, energy saving, high brightness, clear image.
7. Including dual system configuration and conference software, not only for teaching but also for conferences.
8. UHD 4K High resolution, display content clearly visible.

Display Information
Screen Size55inch65inch75inch86inch
Panel Typea-Si TFT-LCDa-Si TFT-LCDa-Si TFT-LCDa-Si TFT-LCD
Aspect Ratio16:916:916:916:9
Resolution3840*2160P3840*2160P3840*2160P3840*2160P
Viewing Angle89/89/89/8989/89/89/8989/89/89/8989/89/89/89
Brightness320cd/m2350cd/m2350cd/m2350cd/m2
Active Area1209.6x 680.4mm1428.48x803.52mm1649.664x927.936mm1913x1084mm
Contrast Ratio4000:14000:11200:11200:1
Response Time8ms8ms8ms8ms
Display Color8 bit 1.67M8 bit 1.67M10 bit 1.07B10 bit 1.07B
Field Frequency60Hz60Hz60Hz60Hz
Service Lifetime≥60,000 hours≥60,000 hours≥60,000 hours≥60,000 hours
Touch System
Sensing TypeInfrared System (Multi 10 point touch)
Response Time6ms
ConnectionFull-speed USB (Driver free)
Surface ProtectionTempered Glass with 4mm thickness Standard
Graphic cardIntel HD Graphics, Supports 1080P, H264, 3D play
BluetoothBluetooth4.0
Speaker15W x2
NetworkWIFI/ RJ45
PortUSB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating SystemAndroid 6.0
CPUQuad Core Cortex A7 1.8 GHZ
RAMDDR3 2G
ROM32G
SD card slotSupport MAX 128G
PortRJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
LanguagesEnglish, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply96~264V AC, 50/60Hz
Power Consumption220W~500W
Operating Temperature0℃~50℃
Storage Temperature-10℃~70℃
Supplied AccessoriesAC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H)1290.5*817.6*99.3mm1516.3*947.1*96mm1737.7*1072.6*103mm1991.1x1212.6x125.6mm
Package L*W*H1427*963*232mm1646*1062*230mm1860*1230*260mm2136*1370x280mm
Net weight40KG50KG68KG76KG

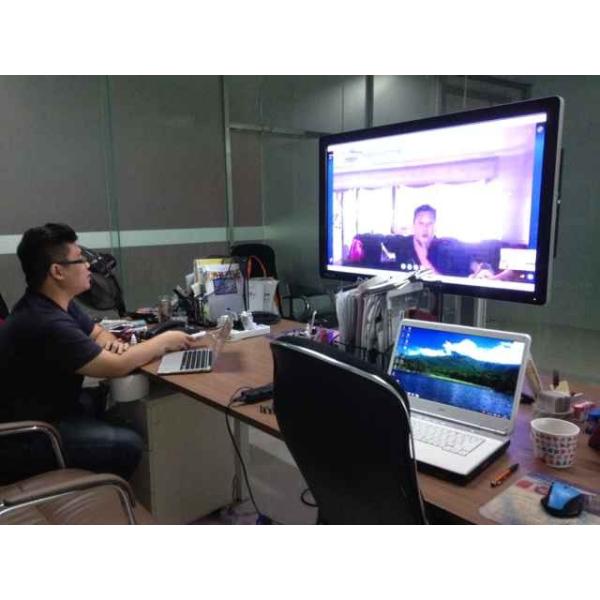

Real-picture

A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room

Product's details


A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room

Application


A-Si TFT-LCD Touch Screen Lcd Panel Monitor 75'' High Brightness For Meeting Room

FAQ


Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.

Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.

Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design with Tempered Glass Surface.

Q:Can I customize the product I ordered?
A:Absolutely yes, customization offer from customers are most welcome in our company.

Q:When can I get the quotation?
A:We usually quote within 12 hours after we got your inquiry.
If it is very urgent,please call us or contact us via email,Skype or WhatsApp.

Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.


Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.
