Orange Color LED LCD Panel Screen Customized FSTN Segment Monochrome 3.3V
Orange Color LED LCD Panel Screen Customized FSTN Segment Monochrome 3.3V
Orange Color LED LCD Panel Screen Customized FSTN Segment Monochrome 3.3V
Orange Color LED LCD Panel Screen Customized FSTN Segment Monochrome 3.3V
Specifications
Brand Name :
Elite Tree
Model Number :
ET0804TN03
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
FSTN Mono Display with PIN Connector
Polarizer Mode :
Transflective Positive
Operting Voltage :
3.3V
Driver IC :
HT1622
Description

Customized FSTN Segment Monochrome LCD Panel Screen With Orange Color LED

LCD Panel Screen
Product Information
Display Type FSTN Mono LCD Panel Screen Display
Polarizer Type Transflective Positive
Viewing Area (mm*mm)
40.50mm * 37.00mm
Outline Dimension (mm*mm) 50.99mm * 55.00mm * 7.10mm
Drive Method 1/8 Duty, 1/4 Bias
Driver IC HT1622
Driving Voltage 3.3V
Viewing Angle 6 O'clock
Connector COB
Backlight 3pcs Orange LED
Customized Customized accepted

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

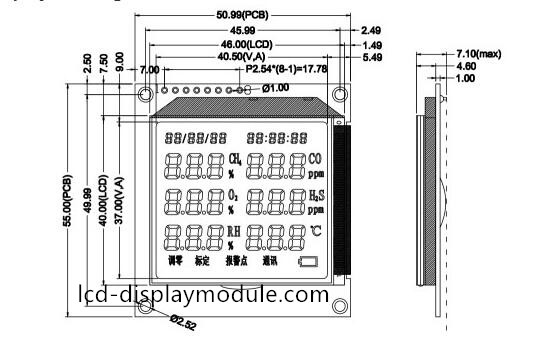

Outline Drawing


Orange Color LED LCD Panel Screen Customized FSTN Segment Monochrome 3.3V
