WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen
Specifications
Brand Name :
Elite Tree
Model Number :
ET700NP07
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 7'' 800*RGB*1280
Viewing Direction :
All
Operting Voltage :
3.3V
Interface :
MIPI
Description

TFT 7'' 800* 1280 WXGA IPS TFT LCD Screen RGB With MIPI Interface​

TFT LCD Screen

Product Information

Display Type 7'' TFT LCD Screen
Resolution 800 * 1280
Outline dimension 99.85mm * 161.70 * 2.60mm
Active area 94.20mm * 150.72 mm
Interface MIPI
Touch panel optional Optional
Viewing direction All
LED backlight color
 White
Power supply(typ) 3.3V
Backlight current (typ) side, white Led(20PCS)
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

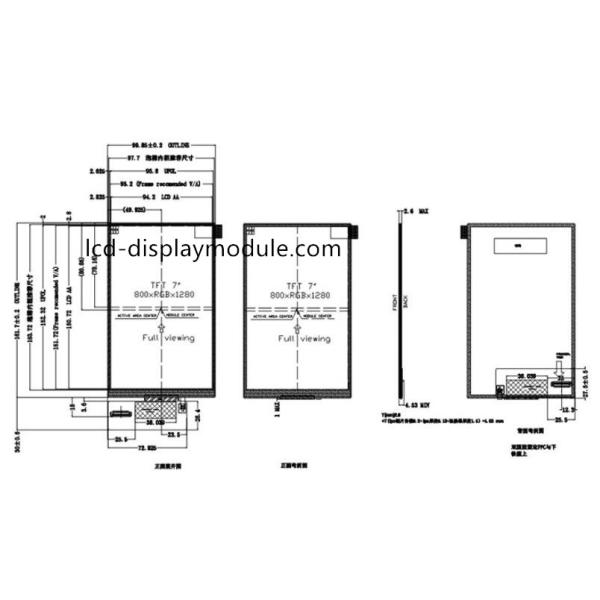

Product Drawing (PIN Definition)

WXGA RGB MIPI Customized TFT LCD , Optional TPO 800 X 1280 7 LCD Screen​
