Specifications
Brand Name :
Elite Tree
Model Number :
ET450NP01
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 4.5 Inch 540*RGB*960
Viewing Direction :
All
Driver IC :
OTM1285
Brightness :
350cd/m2
Panel Model :
AT090TN12V3
Description

TFT 4.5 Inch 540 * 960 Resolution TFT LCD Screen With 350cd/m2 Brightness IPS↵

TFT LCD Screen

Product Information

Display Type 4.5'' TFT LCD Screen
Resolution 540 * 960
Outline Dimension 59.61mm * 108.30mm * 1.60mm
Active area 55.49mm * 96.64mm
Interface RGB
Viewing Direction All
LED backlight color
 White LED
Power supply(typ) 3.3V
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
Brightness 350cd/m2
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

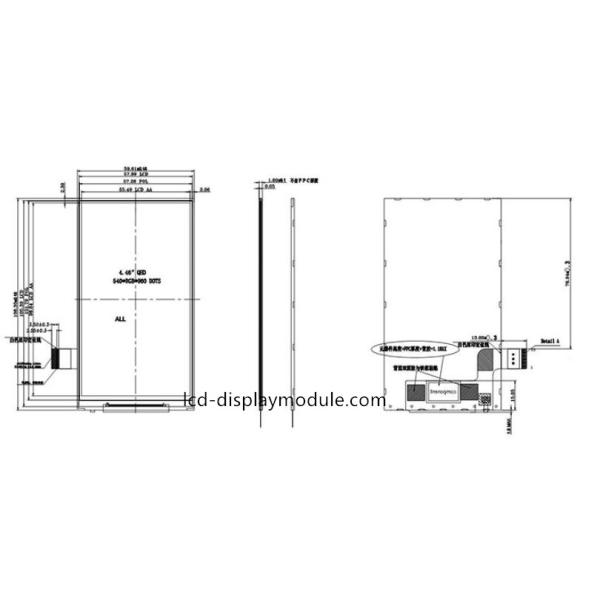

Product Drawing

​
