Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Specifications
Brand Name :
Elite Tree
Model Number :
ET350NP06
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 3.5 Inch 480 * 640
Viewing Direction :
9 O'clock
Driver IC :
HX8363A
Interface :
RGB18 bit +SPI
Description

TFT 3.5 Inch 480 * 640 Resolution TFT LCD Screen With RGB18 bit +SPI Interface​↵

TFT LCD Screen

Product Information

Display Type 3.5 Inch TFT LCD Screen
Resolution 480 * 640
Outline Dimension 64.00mm * 85.00mm * 3.00mm
Active area 53.28mm * 71.04mm
Interface RGB18 bit +SPI
Viewing Direction 9 O'clock
LED backlight color
 White LED
Driver IC HX8363A
Power supply(typ) 3.3V
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
Brightness 300cd/m2
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

Product Drawing

​

Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating

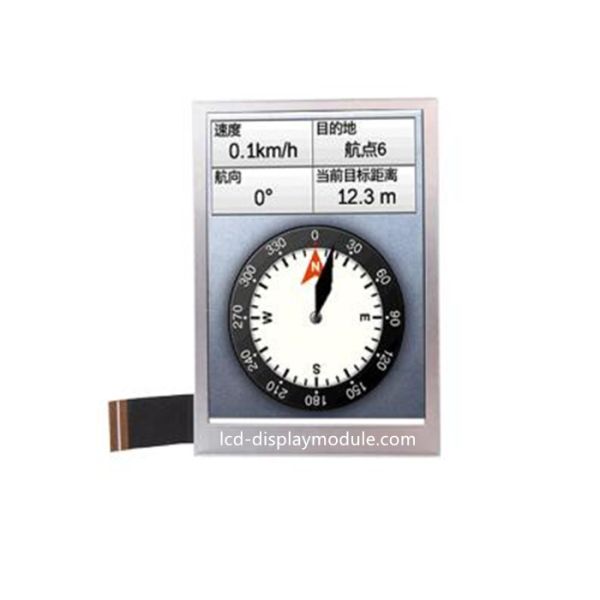

Product Photo

Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
