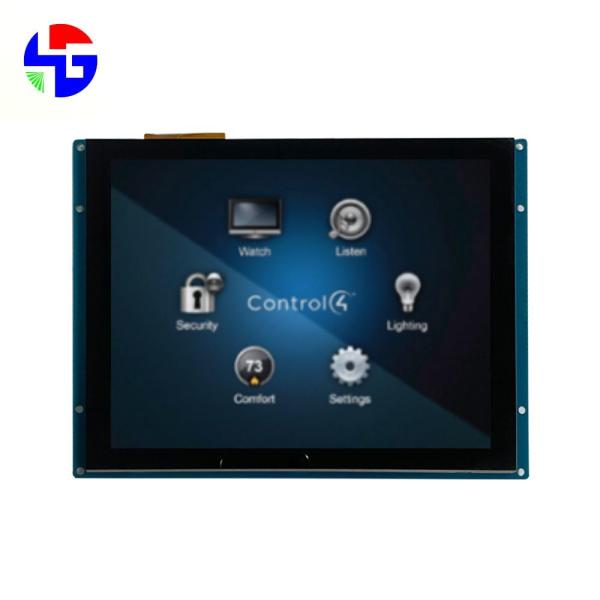

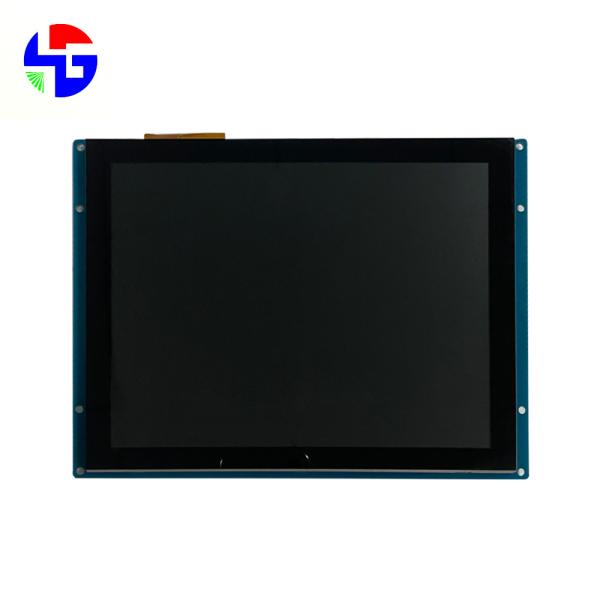

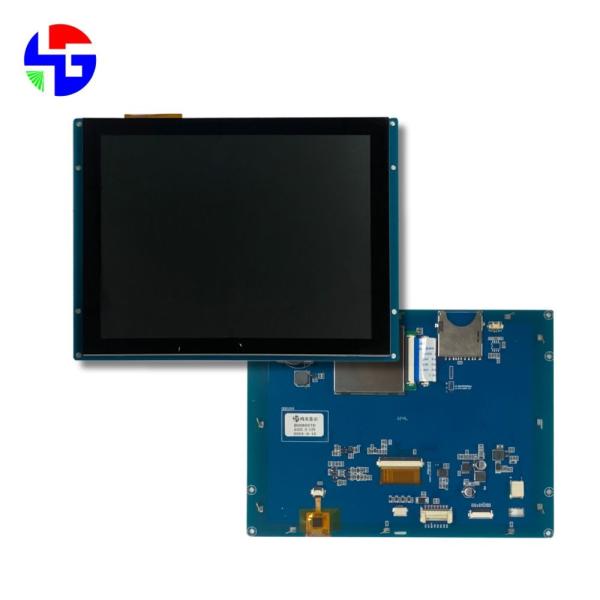

8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
8.0 HMI Intelligent TFT LCD Display Module 800x600 With Control Board TTL / RS232
Specifications
Brand Name :
HG
Model Number :
HG080STD02C
Certification :
ROHS/CE/ISO9001
Place of Origin :
ShenZhen China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350Kpcs/month
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
8.0-inch
LCD Type :
TN
Resolution :
800x600
Luminance :
300 cd/m2
Module Dimensions :
190.40 x 105.20 x 16.60 (mm) (WxHxD)
Active Area :
162.00 x 121.50 (mm) (WxH)
Description

HG080STD02C | 8.0 inch HMI Intelligent TFT LCD | Display Module | 800x600 | Arduino Touch Screen Panel | Control Board | TTL | RS232 |

This 8.0-inch serial display module is a 6 O’clock TFT LCD with a capacitive touch screen.

It can be used in intelligent home appliances, transit track, data rooms, charging piles, power medicine, national security and security, shared equipment.

Optional custom solution with capacitive or resistive touchscreen.

The material is RoHS-compliant.

Diagonal (inch) 8.0
Resolution (pixel) 800x600
Display Type TN
Display Mode Counting Module
Optimal View 70°/ 70°/ 50°/ 70
Touch Screen CTP
Module Dimensions (mm) (W x H x D) 199.40 x 148.80 x 19.00
Active Area (mm) (W x H) 162.00 x 121.50
Luminance (cd/m2) 300 (customization)
Interface RS232 and TTL/CMOS
Operating Temperature (°C) -20~+70
Storage Temperature (°C) -30~+80

- 2 Types of Microscopy-Inspections

  • In process of Backlight assembly and FOG bounding

- 3 Stages of Aging-Tests

  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment

- 4 Types of Lab Tests

  • High-Temperature
  • High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test

- 5 Times of Quality Inspections

  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading

Application

Our products can be widely used in telecommunication devices, consumer products, medical, industry, smart home, smart life, office automation, home appliances, and other fields.

8.0
