TFT Class LCD Screen HDMI Driver Board Industrial Control
TFT Class LCD Screen HDMI Driver Board Industrial Control
Specifications
Brand Name :
HG
Model Number :
HGYD2686HV-V2
Certification :
ROHS/CE/ISO9001
Place of Origin :
Shenzhen China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300Kpcs/month
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
HGYD2686HV-V2 HDMI Driver Board
interface type :
LVDS
display color :
24 bit（3×8，16.7M）
control area :
480×272～2560×1600 Equal resolution of the LCD
MTBF :
>100000 hour
signal input :
VGA、HDMI,DP
Description

HGYD2686HV-V2 LCD industrial drive panel is mainly designed for TFT class LCD screen, suitable for industrial control

Product description

1. synopsis

HGYD2686HV-V2 LCD industrial drive panel is mainly designed for TFT class LCD screen, suitable for industrial control, medical, security, instrumentation and other LCD screen.

ØInput signal type: digital HD (DP), digital HD (HDMI), analog (RGB, VGA).

ØThe board card supports a wide voltage input of 8V~25V; the typical value is 12V (when the screen power supply is 12V, the board card power supply must be 12V)

ØWide temperature working range: -20℃ ~ + 70℃

ØThe card comes with LED backlight drive circuit; supports small and medium sized LED backlight drive.

ØThe Backlighting power supply supports 5V / 12V (default 12V), and supports the PWM duty cycle to adjust the backlight brightness

ØDisplay and output interface: EDP output: 2lane / 4lane, and LVDS double output interface: 8BIT

ØHD HDMI, analog RGB (VGA) resolution for PC (PC) graphics card: 480x272, VGA, SVGA, XGA, SXGA, WXGA +, UXGA, 1920X1200,2048x1536,2560x1080,2560x1600 and other VESA standard signals;

ØFeatures: This card has simple operation and reliable performance.

Product parameter details

product model HGYD2686HV-V2 outline dimension 107mm×65 mm×16.5mm(L×W×H)
interface type LVDS display color 24 bit(3×8,16.7M)
operation interface Visualize the OSD operation interface communication interface Digital keys,Infrared IR
control area 480×272～2560×1600 Equal resolution of the LCD
working temperature Operating temperature is: -30℃ ~70℃ (except for the main core), storage temperature: -40℃ ~70℃
Atmospheric pressure range of the working environment 70kPa～106kPa MTBF >100000 hour
Display voltage 3.3V/5V/12V jumper selection signal input VGA,HDMI,DP

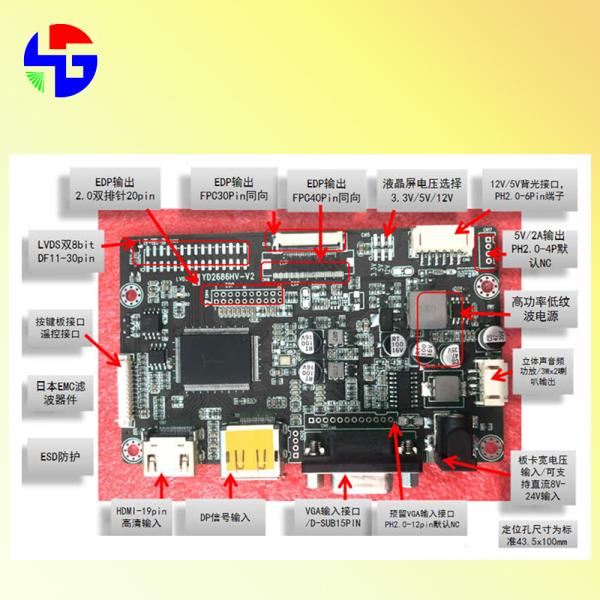

TFT Class LCD Screen HDMI Driver Board Industrial Control

Packaging and transportation

Packaging details:

1. All products are packaged in the correct packaging for safety.

2. For small size products, we use tray = cartons.

3. For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging for customer request.

Transport

1. By express (3-7 working days), suitable for emergency time and small amounts.

2. Marine transportation (15-30 days), suitable for routine mass production.

3. Air transport (4-5 days), from airport to airport.
