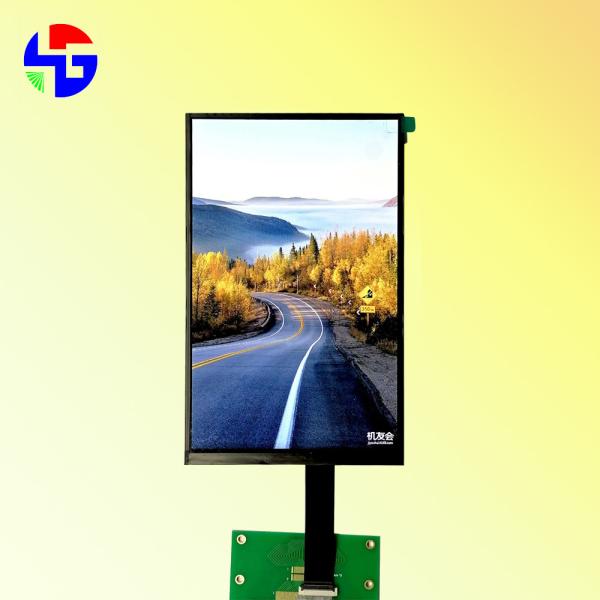

8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution
8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution
8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution
8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution
Specifications
Brand Name :
HG
Model Number :
HG080WX015
Certification :
ROHS/CE/ISO9001
Place of Origin :
ShenZhen China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350Kpcs/month
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
8.0-inch custom TFT displayh
LCD Type :
TFT
Dot Arrangement :
800*1280
Viewing Angle :
ALL
Luminance :
1000cd/m2(customizable
Signal Type :
MIPI interface 30PIN
Description

8.0-inch display is a custom TFT display with MIPI interface, TFT, full view and 800*1280 resolution

Product description

8.0-inch display is a custom TFT display with MIPI interface, TFT, full view and 800*1280 resolution, used for industrial control equipment and outdoor related products, can realize outdoor sunlight visib

Product parameter details

Model HG080WX015 Application industry industrial control
Size/inch 8.0 inch Arrangement 800*1280
Display size 107.64mm*172.224mm External dimensions 114.6mm*184.1mm*2.75mm
Viewing Angle ALL Luminance 1000cd/m2(customizable
Contrast ratio 1000 NTSC 55%
Signal types MIPI interface 30PIN
Temperature Working temperature: -20℃~60℃
Remark Outdoor highlight, wide temperature products

8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution

Description of product

TFT is an 8-inch HG080WX015 screen with a resolution of 800*1280 and a brightness of 1000cd/m2. effect of IPS

It is composed of TFT LCD panel, driver IC, FPC and backlight

It is 800*1280 resolution wide temperature, custom TFT display,

Using MIPI-4 channel interface,30PIN, it can work at -20 ° C to 60 ° C

This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

All can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial driver board)

Comply with RoHS and CE certification standards

If you can't find one, please contact us for a recommendation

8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution

Packing and shipping

Packing details:

1. All products are packaged in the correct way to ensure safety.

2. For small size products, we use pallets = cartons.

3. For larger sizes, we use knife card + foam + carton.

4. We can also design packaging according to customer's requirements.

transport

1. By express (3-7 working days), suitable for emergency time and small amount.

2. By sea (15-30 days), suitable for routine mass production.

3. By air (4-5 days), from airport to airport.

8.0 Inch Display Custom TFT Display MIPI Interface 800x1280 Resolution
