RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices
Specifications
Brand Name :
HG
Model Number :
HG043WV016
Certification :
ROHS/CE/ISO9001
Place of Origin :
ShenZhen China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350Kpcs/month
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
4.3-inch LCD TFT display
LCD Type :
TFT
Dot Arrangement :
800*480
Viewing Angle :
ALL
Luminance :
450cd/m2(customizable）
Signal types :
RGB Interface 40PIN
Description

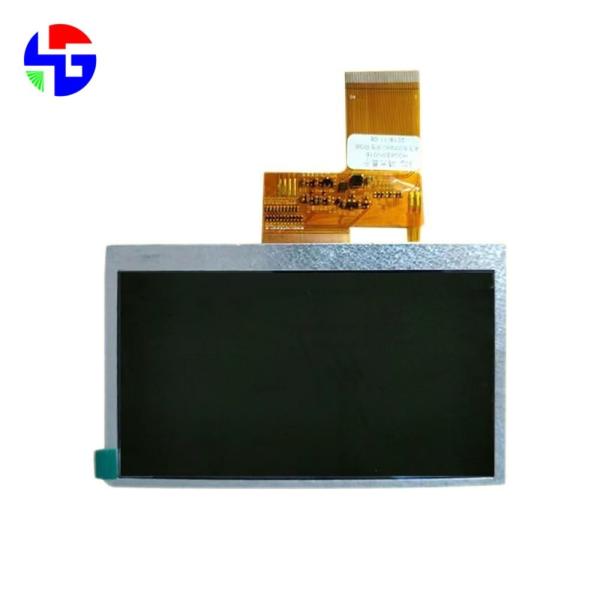

HG043WV016 4.3-inch RGB interface, 40PIN, TFT, full view, 800*480 resolution LCD TFT display, suitable for handheld devices.

Product parameter details

Model HG043WV016 Application industry Handheld devices
Size 4.3-inch Arrangement 800*480

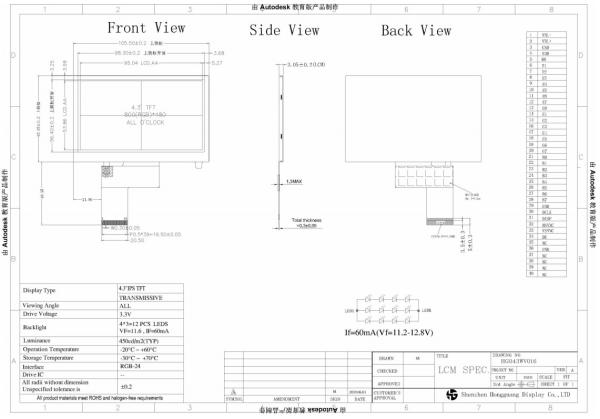

Display size 95.04mm*53.856mm External dimensions 105.5mm*67mm*2.9mm
Viewing Angle ALL Luminance 450cd/m2(customizable)
Contrast ratio 800 NTSC 70%
Signal types RGB Interface 40PIN
Temperature Operating temperature:-20℃~+70℃
Remark Instead of the 480*272 TN scheme, the resolution is improved to 800*480 with full view

Description of Products

HG043WV016 is a standard series of replacement 480*272 TN solution, the resolution is increased to 800*480, display effect is full view of LCD TFT display,

It is composed of TFT LCD panel, driver IC, FPC and backlight source. It can also make full fitting process.

Using RGB interface 40PIN, can work in -20℃~70℃, can also be stored in: -30℃~80℃.

This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

It also meets RoHS and CE certification standards

If you can't find a suitable one, please contact us for a recommendation.

RGB Interface 4.3 TFT LCD Display 40pin 800x480 for Handheld Devices

Packaging and transportation

Packaging details:

1.All products are packaged correctly to ensure safety.

2.For small-size products, we use the tray = carton.

3.For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging according to customer requirements.

Transport:

1. Through express delivery (3-7 working days),

2. Marine transportation (15-30 days), suitable for conventional mass production.

3. Air transport (4-5 days), from airport to airport.
