800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View
Specifications
Brand Name :
HG
Model Number :
HG070WV020
Certification :
ROHS/CE/ISO9001
Place of Origin :
ShenZhen China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
350KPCS/Mouth
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
7.0-inch LCD TFT display
LCD Type :
TFT
Dot Arrangement :
800*480
Viewing Angle :
TN 6 0' Clock ultra-wide view
Luminance :
250cd/m2(customizable）
Signal Type :
RGB Interface 50PIN
Description

HG070WV020: 7.0-inch is an RGB interface, TFT,TN 6 0'Clock, with an ultra-wide view view and an 800 * 480 resolution standard LCD TFT Display

7.0-inch is an RGB interface, TFT,TN 6 0'Clock, with an ultra-wide view view and an 800 * 480 resolution standard LCD TFT display for instrumentation.

Product parameter details

Model HG070WV020 Application industry Instrumentation
Size 7.0 inch Arrangement 800*480

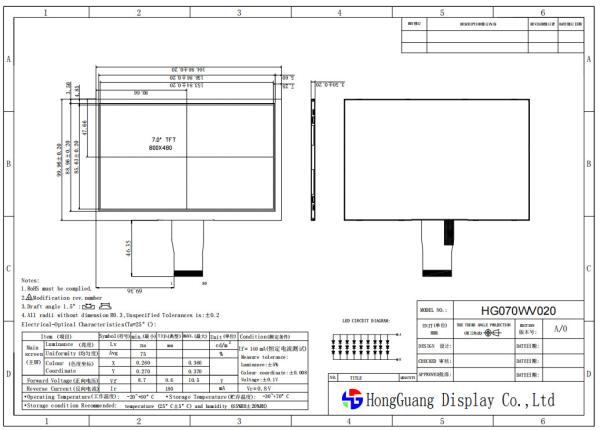

Display size 153.84mm*85.63mm External dimensions 164.86mm*99.96mm*3.5mm
Viewing Angle

TN 6 0' Clock ultra-wide view

 Luminance 250cd/m2(customizable)
Contrast ratio 500 NTSC 45%
Signal types RGB Interface 50PIN
Temperature Operating temperature: -20℃ ~ + 70℃, storage temperature: -30℃ ~ + 80℃
Remark The display effect is an ultra-wide viewing view

Description of products

HG070WV020 is a projective row color active matrix LCD

It is composed of TFT LCD panel, driver IC, FPC and backlight

It is a standard series of 800*480 resolution display effect for ultra-wide viewing Angle LCD TFT display

Using RGB-24 channel interface 50PIN, can work in -20℃~70℃, storage temperature: -30℃~80℃;

This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

Comply with RoHS and CE certification standards

If you can't find a suitable one, please contact us for a recommendation

800x480 Resolution 7.0 Inch RGB Interface TFT TN Panel With An Ultra Wide View

Packaging and transportation

Packaging details:

1.All products are packaged correctly to ensure safety.

2.For small-size products, we use the tray = carton.

3.For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging according to customer requirements.

Transport:

1. Through express delivery (3-7 working days),

2. Marine transportation (15-30 days), suitable for conventional mass production.

3. Air transport (4-5 days), from airport to airport.
