MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2
Specifications
Brand Name :
HG
Model Number :
HG101WU039
Certification :
ROHS/CE/ISO9001
Place of Origin :
Shenzhen China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350Kpcs/month
Delivery Time :
7-15working days
Packaging Details :
Standard Export Package
Product Name :
10.1-inch industrial LCD display
LCD Type :
TFT
Dot Arrangement :
1200*1920
Viewing Angle :
ALL
Luminance :
350cd/m2(customizable）
Signal Type :
MIPI-4，40PIN
Description

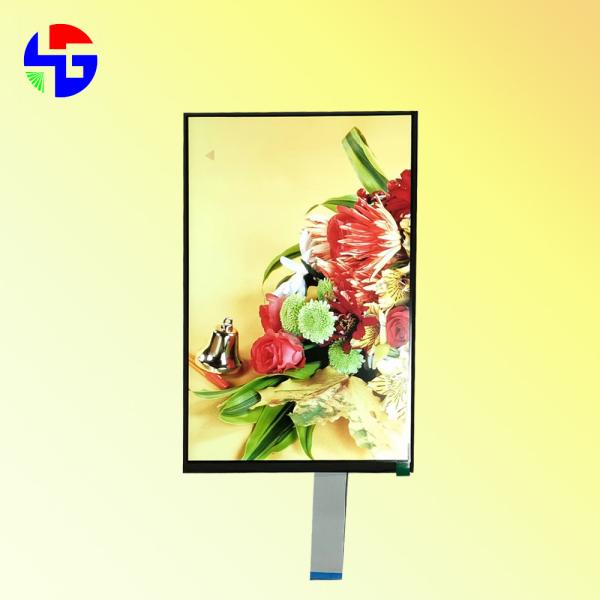

10.1-inch LCD screen is a MIPI interface, TFT, full Angview, with a 1200 * 1920 resolution of industrial LCD display

Product Description

10.1-inch LCD screen is a MIPI interface, TFT, full Angview, with a 1200 * 1920 resolution of industrial LCD display, Suitable for industrial control equipment and other related products

Product parameter details

Model HG101WU039 Application industry Industrial control
Size 10.1 inch Arrangement 1200*1920
Display size 135.36mm*216.58mm External dimensions 142.8mm*228.2mm*2.25mm
Viewing Angle ALL Luminance

350cd/m2(customizable)
Contrast ratio 1000 NTSC 70%
Signal types MIPI-4,40PIN
Temperature

Operating temperature is: -20℃ ~60℃,

storage temperature: -30℃ ~70℃
Remark: The LCD TFT display screen is suitable for the industrial control industry

MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2

Description of products

HG101WU039 is a projective row color active matrix LCD screen

It is composed of TFT LCD panel, driver IC, FPC and backlight

It is 1200*1920 resolution, display effect for the full view of the industrial LCD display

Using MIPI-4 channel interface 40PIN, can work at -20℃~60℃, storage temperature: -30℃~70℃

This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

Comply with RoHS and CE certification standards

If you can't find a suitable one, please contact us for a recommendation

MIPI Interface 10.1 Inch LCD Panel 1200x1920 High Brightness LCD Display 350cd/M2

Packaging and transportation

Packaging details:

1. All products are packaged correctly to ensure safety.

2. For small-size products, we use the tray = carton.

3. For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging according to customer requirements.

Transport

1. Through express delivery (3-7 working days),

2. Marine transportation (15-30 days), suitable for conventional mass production.

3. Air transport (4-5 days), from airport to airport.
