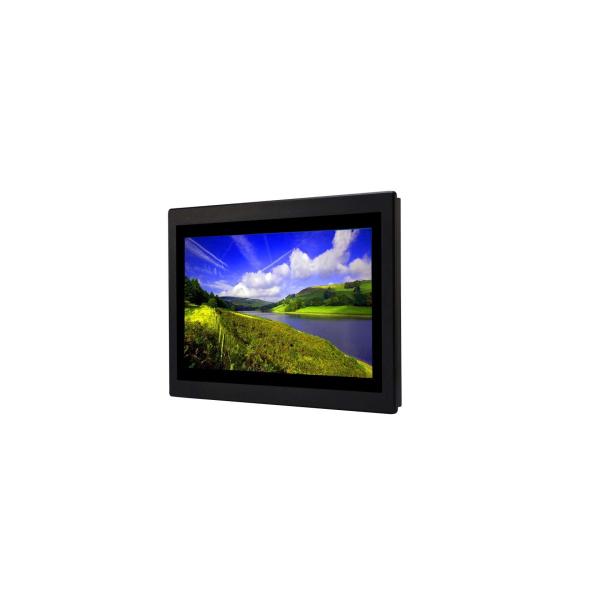

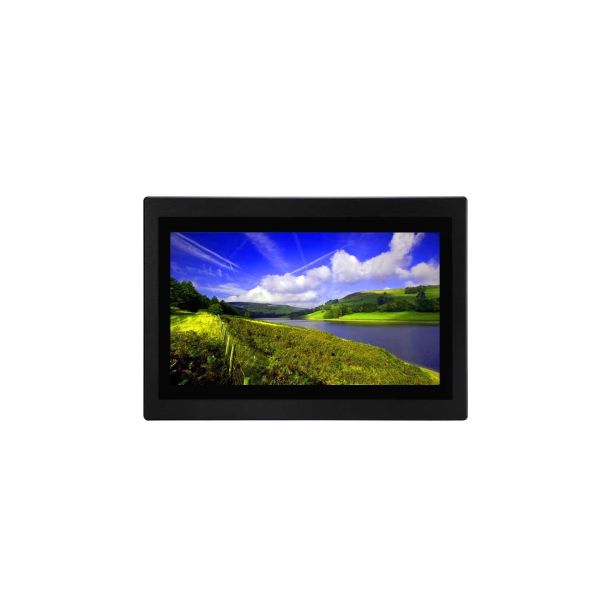

12.5 Inch Wall Mounted LCD Monitor VGA Desktop Touch Screen Monitor RoHS
12.5 Inch Wall Mounted LCD Monitor VGA Desktop Touch Screen Monitor RoHS
Specifications
Brand Name :
LONGYU
Model Number :
LY-B125
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Size :
12.5”
Backlight technology :
Led
Visual Angle :
Horizontal: 160 / Vertical: 140
Touch point number :
10
Power input :
DC 12V3A (50/60 Hz)
Display resolution :
1920x1080
Interlinkage :
USB2.0
Description

PRODUCT DESCRIPTION

12.5-Inch Embedded / Wall-Mounted / Desktop Installation Industrial LCD Touch Screen Monitor

ITD Industrial chassis LCD monitors come with rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial harsh environments. Industrial touch screen chassis monitor displays are designed for digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports and railroad terminals.

SPECIFICATION

  • LCD face-plate
Backlight technology Led
Luminance 300 cd/m2
Contrast ratio 3000:1
Visual Angle Horizontal: 160 / vertical: 140
Response time 25ms(GTG)
Display color 262K(6bit) Colors
Display resolution 1920x1080 (16:9)
Frequency of refresh 60Hz
Input resolution 1920x1080 @ 60Hz
Junctor VGA / HDMI
  • OSD function
OSD control Button
OSD language English, Chinese
  • Touch screen parameters
Glass 3mm black screen screen tempered glass
Touch point number /
Touch technology /
The pen type /
Waterproof performance /
Calibration

/
Response time /
Interlinkage /
Multitouch control protocol support /
Operating system Win 7/8,Android,Linux
  • Mechanical parameters
Dimension 334*230*45mm
Weight (approx) 3kg / 5 kg
Wall hanging form VESA,MIS-E,C
  • Electrical parameters
Power input DC in: DC 12V3A (50/60 Hz)
Power ≤ 25W (typ.)
Standby power ≤ 2W (typ.)
Built-in speakers /
  • Enviromental parameter
Work environment 0 °C ~ 40 °C, 90% RH
Storage environment -20 °C ~ 60 °C, 90% RH
  • Fitting
Other Bracket / power cord / VGA cord / USB cord / power adapter

FEATURES

There are menu operation buttons on the back of the case, which is more convenient for users to adjust the use effect to the best state, and supports multi-language switching;

DC 12V power input (optional 12-24V wide voltage), using phonix fastening power socket, more convenient for industrial field applications. Equipped with a world-renowned brand "Huntkey" power adapter;

Standard VGA display interface (VGA / HDMI and other interfaces are optional);

Operating system: compatible with mainstream operating systems such as Win 7/8,Android,Linux;

Support multiple installation methods, embedded/wall-mounted/desktop.
