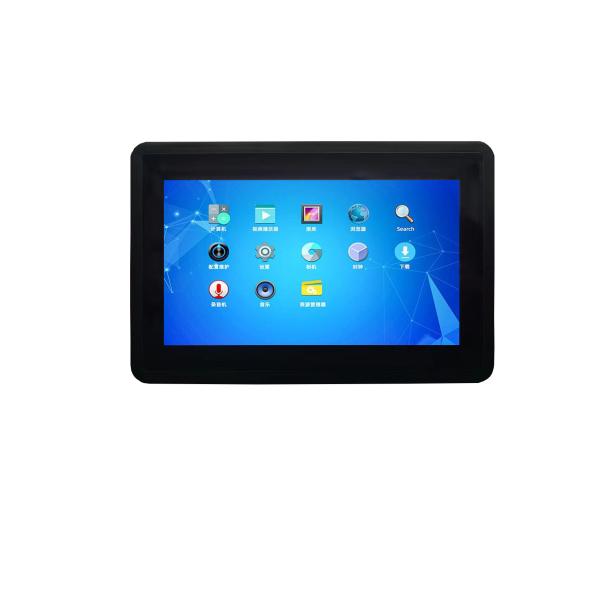

Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
Specifications
Brand Name :
LONGYU
Model Number :
LYA070K30C
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Material :
Plastic face frame, metal back cover
Resolution :
1280 * 800
Touch form :
Capacitive 10 touch
Operating System :
Android10.0
CPU :
RK3399 (dual Cortex-A72 large core+four Cortex-A53 small core structure) 1.8GHZ
Running memory :
2GB/4GB
EMMC :
16GB/32GB/64GB/128GB
IP Grade :
Industrial grade IP65 dustproof and water proof
Working Temperature :
-10℃ ~ 60℃
Storage temperature :
-20℃ ~ 70℃
Description

7 Inch Panel PC for Beauty Therapy

LYA101K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

System

 CPU processor RK3399 (dual Cortex-A72 large core+four Cortex-A53 small core structure) 1.8GHZ
Operating System Android10.0
Running memory 1GB
EMMC 8GB
GPU GE8300

Display

 Size 7.0 Inch
Resolving power 1280 * 800
Touch form Capactive 10 touch
Luminance 300 cd/ m²
Angle of view Full perspective

Material

 Material quality Plastic face frame, metal back cover
Way to stall Flat, outer, embedded
Dimension 192 * 128 * 28mm
IP protection grade Industrial grade IP65 dustproof water proof (operating face)

Source

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 10.6V-13.2V(Recommended value 12V)

Environmental Character istics

 Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%

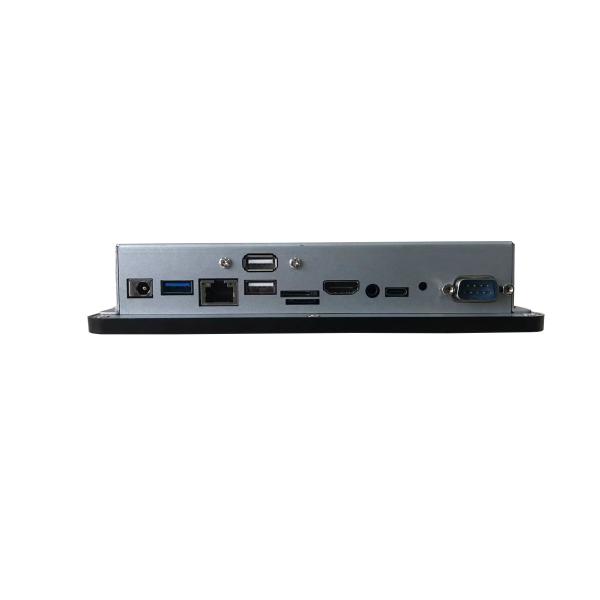

Serial port 2 Route RS232 / TTL, 2 route TTL；
Audio interface 1-way MIC interface
Gigabit Ethernet interface 1-Route 10 / 100 /1000 Mbps Ethernet port
HDMI interface 1 HDMI output, with a maximum resolution of 3840 * 2160
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Road Hardware Clock
WIFI/BT 2.4G WIFI
4G interface Expand mini PCIE 4G module
GPIO interface 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
USB2.0 1 USB 2.0,3 built-in pins (USB 2.0)
USB3.0 1 Horizontal insertion interface, USB 3.0

2 Product Performance

Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
Capacitive 7 Inch IP65 Panel PC Dustproof For Beauty Therapy CE
