IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
Specifications
Brand Name :
LONGYU
Model Number :
DIPA156C-A
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
CPU :
Intel®Celeron™ J900
Size :
15.6 Inch
Contrast :
800:1
Respond time :
< 5ms
Resolution ratio :
1920*1080
Backlight life :
30000hrs
MaximPower Consumption :
33W
Pixel pitch :
0.248×0.248
Description

Product Description

Industrial Control Panel Touch Screen Monitors Embedded Industrial Panel Display IP65 waterproof

Specifications:

● Intel® Celeron® J1900 main frequency 2.0Ghz quad-core four threads

● 4GB DDR3L high-speed memory, up to 16G support

● Dual Realtek 10M/100M/1000M adaptive Gigabit network chips

● 6 serial ports (up to 2 x RS485), 1*USB3.0,3*USB2.0, 1*HDMI, 1*VGA, Rich interface

● WiFi, Bluetooth, 4G wireless configuration optional

● Panel mounting hole size (recommended) 378 x 234 (W x H)

● Peripheral size 392 x 246 x 45 (W x H x D)

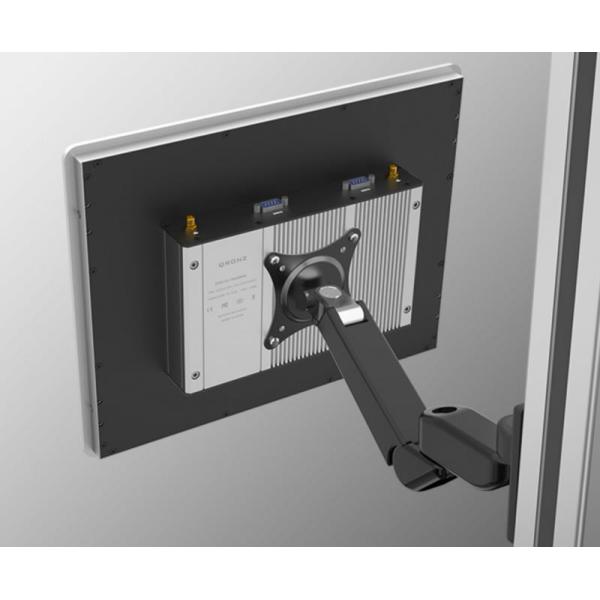

● Installation method: Support 75mm*75mm VESA installation and front embedded installation

Product Performance:

System Parameter

 CPU Intel®Celeron™ J900
Frequency 2.0GHz
Running memory Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
EMMC 1 * mSATA(3.0)

I/O

 Network 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port
Mic Realtek® HDA Codec, with MIC/Line-out
USB 1x USB3.0/3 x USB2.0
Serial port 4 x RS-232； 2 x RS-232 / RS-485
expansion slot 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
I/O port 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN
physical characteristics Dimension (W x H x D)

392mm x246mm x 45mm
hole size (W x H)

378mm x 234mm
Net Weight 3.56kg
Operating System Operating System Windows10, Linux,
Power Input voltage 12VDC (12-24VDC),Supports reverse connection protection
MaximPower Consumption 33W

Display

 screen 15.6" Full HD TFT
Resolving power 1920*1080
Color Dispay 16.7MB
Backlight LED
Backlight life 30000hrs
Pixel pitch

0.248×0.248
Luminance 250 cd/cm²
Contrast 800 : 1
View angle (L) 80/ (R) 80 / (T) 80 / (B) 80

Environmental parameter

 Working temperature 0 ~ 45° C (32~113°F)
0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT)
Operating Temperature -20 ~ 60° C (-4 ~ 140°F)
Relative humidity 10~95% RH@40°C,non-condensing
Vibration SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis
EMC CE/FCC Class B
waterproof IP65
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
IP65 Waterproof Touch Screen Monitors Industrial Embedded RoHS
