Specifications
Brand Name :
LONGYU
Model Number :
LYA104K20I-TX
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Resolving power :
1024*768
Touch form :
no touch
CPU :
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Size :
10.4 Inch
GPU :
Mali-G52 1-Core-2EE
Way to stall :
Embedded installation
Description

Product Description

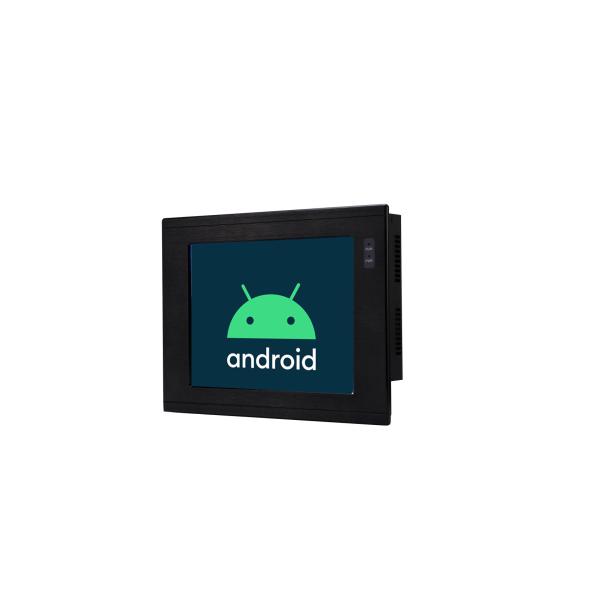

10.4 inch Waterproof Embedded Industrial Panel PC Computer Highlight screen

Product Feature

The LYA104K20I-TX is an industrial-grade high-performance embedded integrated touch screen with the chip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.4-inch LED LCD display (with a resolution of 1024 * 768). Support for USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Product Performance:

Performance Detail

System

CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

Size 10.4 Inch
Resolving power 1024 * 768
Touch form No touch
Luminance 600 cd/ m²
Angle of view Full perspective

Material

Material quality Aluminum alloy panel, metal rear cover
Way to stall Embedded installation
Dimension W293mm×H222mm×54mm
IP protection grade Industrial grade IP64 (operating face)

Power

Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12V-30V(Recommended value 24V)

Environmental Characteristics

Working temperature -20℃ ~ 70℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

3 RS232,2 RS232 / RS485 / CAN switch;

6-way TTL serial port (reuse with serial port)

Audio interface Ear integrated interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
GPS The GPS function 4G module should be replaced
4G Expand mini PCIE 4G module
GPIO 4 input and output: 2 optical coupling input, 2 relay dry contact output;
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)

Company introduction

Wuhan Longyu Intelligent Technology Co., LTD. (referred to as "Longyu Intelligent") is a high-tech enterprise focusing on industrial automation touch display products, research and development, production, sales in one. It is headquartered in Optics Valley, China. Wuhan East Lake New Technology Development Zone New energy and environmental protection industry base Gezhouba Sun City Industrial Park. After years of experience accumulation in the automatic control industry, the company fully understands the application of automatic control technology, in-depth study of the development prospects in the field of automatic control, integration of multi-industry resources, integration of advanced industrial computer technology, open up new ideas of automatic control technology, in the development and production of automatic control and embedded computer system has made a huge breakthrough. Become a strong brand company in the field, quickly become a leader in the field of automatic control, products sold at home and abroad.
