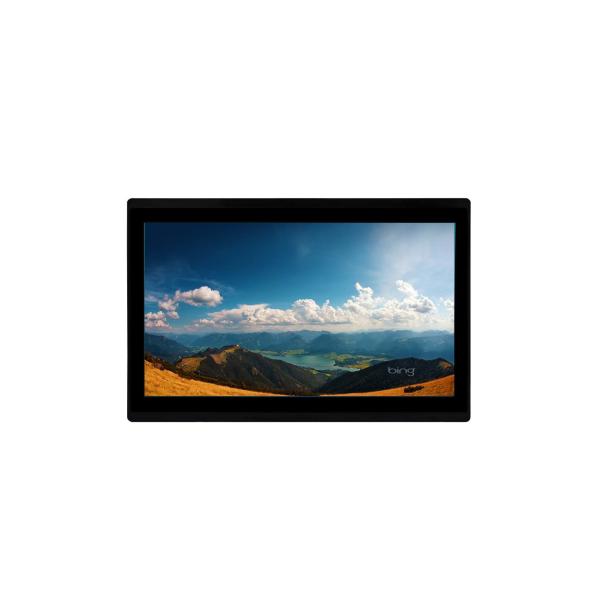

Square Industrial Embedded Touch Panel PC IP65 Waterproof Fanless
Square Industrial Embedded Touch Panel PC IP65 Waterproof Fanless
Square Industrial Embedded Touch Panel PC IP65 Waterproof Fanless
Square Industrial Embedded Touch Panel PC IP65 Waterproof Fanless
Specifications
Brand Name :
LONGYU
Model Number :
LYX156K20C
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Luminance :
300 cd/ m²
Touch form :
Capactive 10 touch
CPU :
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Working Temperature :
-10℃ ~ 60℃
Dimension :
383 * 249 * 51mm
System :
Linux
Description

Product Description

Industrial Medical IP65 Waterproof Wall Embedded Touch Square Screen Panel PC Table True Flatips Fanless PC

LYX156K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 15.6-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications.

Specifications:

CPU:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
Operating System: Linux 4.19
GPU: Mali-G52 1-Core-2EE
Luminance:300 cd/ m²(Select a 450cd / m² s)
Material quality:Plastic face frame, metal back cover

Size:15.6 Inch

Resolving power:1920 * 1080

Touch form:Capactive 10 touch

Luminance:300 cd/ m²

Angle of view:Full perspective

Way to stall:Flat, outer, embedded

Dimension:383 * 249 * 51mm

Power interface:3 PIN*2.54mm terminal DC24V provides power supply

Power input:12-30V Recommended value of 24V

Working temperature:-10℃ ~ 60℃

Storage temperature:-20℃ ~ 70℃

Product Performance:

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 15.6 Inch
Resolving power 1920 * 1080
Touch form Capactive 10 touch
Luminance 300 cd/ m²
Angle of view Full perspective

Material

 Way to stall Flat, outer, embedded
Dimension 383 * 249 * 51mm
IP protection grade Industrial grade IP65 dustproof and water proof (operating face)

Power

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12-30V Recommended value of 24V

Environmental Characteristics

 Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Serial port

2 RS232,2 RS232 / RS485 switch;

6-Road TTL serial port (reuse with serial port)
Audio interface 1-way MIC interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
GPS The GPS function 4G module should be replaced
4G interface Expand the miniPCIE 4G module
GPIO 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)
