IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
Specifications
Brand Name :
LONGYU
Model Number :
HMIAT8070
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Product size :
7 Inch
Resolution ratio :
800*480
Display brightness :
1000cd/m2
Touch screen :
Four wire resistive
Operational temperature :
-40℃-70℃
Degree of protection :
IP 65
Description

Product Description

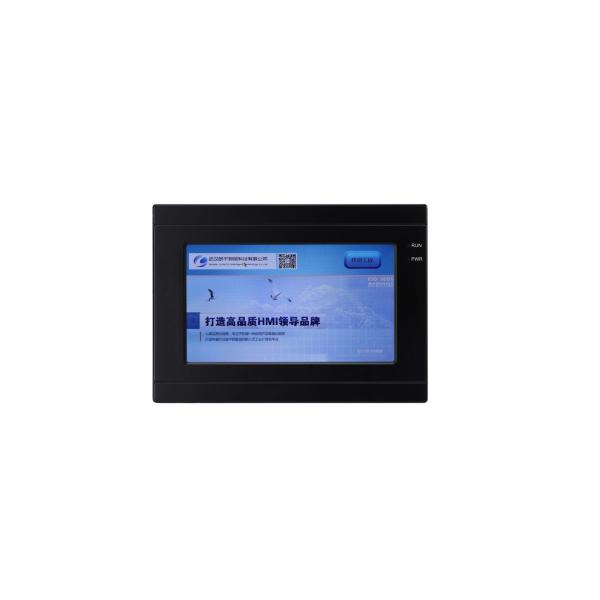

Industrial Waterproof IP65 7 Inch resistive Multi Touch LCD HMI Panel

HMIAT8070 is a high-performance embedded integrated man-machine interface with industrial-grade Quan Zhi T3 Cortex A7 quad-core 1.2G CPU as the core. This product is a 7-inch man-machine interface product designed with 100% domestic devices. It adopts a 7-inch bright LED liquid crystal display (resolution 800*480) and a four-wire resistive touch screen. At the same time, Lonkon industrial configuration software is pre-installed.

Specifications:

  • LCD screen:7-inch TFT LCD, LED backlight, color 65536 bits
  • Resolution:800*480
  • Display brightness:1000cd/m2
  • C P U:Cortex-A7 four core 1.2G
  • Touch screen:Four wire resistive, click more than 1 million times

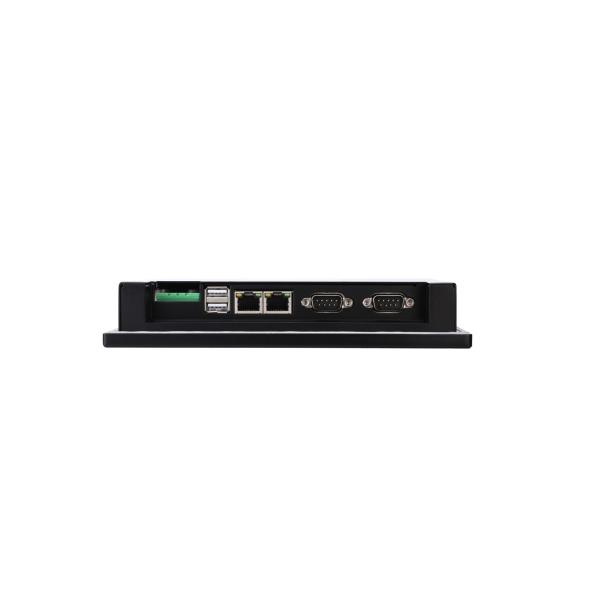

  • Interface:1*RS232,3*RS485(2*CAN for Selectable ),2*Lan
  • Extension interface:2*USB 2.0
  • Input voltage:9V to 36V Wide range input voltage
  • Product Size:W206mm×H148mm×D36mm
  • Opening size:W191mm×H132.6 mm

Product Performance:

·LCD screen: : 7-inch TFT LCD, LED backlight, color 65536 bits
·Resolution : 800*480
Display brightness : 1000cd/m2
·C P U : Cortex-A7 four core 1.2G
·Memory : 1G DDRIII RAM
·Touch screen : Four wire resistive, click more than 1 million times
·Storage device : 8G eMMC electronic disk
·SD card extension : Optional, Max scalability 16G
·Interface : 1*RS232,3*RS485(2*CAN for Selectable ),2*Lan
·Extension interface : 2*USB 2.0
·Real time clock : Available
·Buzzer : Available
·Operational temperature : -40℃ to +70℃
·Degree of protection : IP 65( operating surface)
·Input voltage : 9V-36V Wide range input voltage
·Anti interference : Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
·Case Material : Panel aviation aluminum material, surface treatment: acrylic polyurethane. Treatment method: Primer twice and topcoat three times, with a thickness of about 0.1 mm.
·Product Size : W206mm×H148mm×D36mm
·Opening size : W191mm×H132.6 mm
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
IP65 7 Inch Multi Touch LCD Panel TFT HMI Waterproof Resistive
