7 Inch Industrial HMI Panels / Touch Screen Panel TFT Waterproof
7 Inch Industrial HMI Panels / Touch Screen Panel TFT Waterproof
Specifications
Brand Name :
LONGYU
Model Number :
HMIAT6070
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Product size :
7 Inch
Resolution ratio :
800*480
LCD screen :
7-inch TFT LCD, LED backlight, color 65536 bits
Display brightness :
450cd/m2
Touch screen :
Four wire resistive
Operational temperature :
-20℃ to +70℃
Description

Product Description

7 inch industrial touch screen panel pc 7 inch industrial touch screen HMI Panels Waterproof

HMIAT6070 is a high-performance embedded integrated man-machine interface based on the industrial-grade T3 Cortex A7 quad-core 1.2G CPU. This product is an industrial 7 "human-machine interface product, using 7" high-light LED LCD display (resolution 800*480), four wire resistance touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.

Specifications:

  • LCD screen:7-inch TFT LCD, LED backlight, color 65536 bits
  • Resolution:800*480
  • Display brightness:450cd/m2
  • C P U:Cortex A7,FOUR core 1.2 Ghz
  • Touch screen:Four wire resistive, click more than 1 million times
  • Product Size:W206 mm×H148 mm×36 mm
  • Opening size:W191mm×H132.6 mm

Product Performance:

·LCD screen: : 7-inch TFT LCD, LED backlight, color 65536 bits
·Resolution : 800*480
Display brightness : 450cd/m2
·C P U : Cortex A7,four core 1.2 Ghz
·Memory : 1G DDR3 RAM
·Touch screen : Four wire resistive, click more than 1 million times
·Storage device : 8G eMMC electronic disk
·SD card extension : Optional, Max scalability 64G

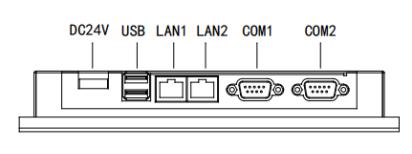

·Interface : 2*RS232R,3*S485 Expandable 2*CAN port,2*LAN
·Extension interface : 2*USB 2.0(HOST)
·Real time clock : Available
·Buzzer : Available
·Operational temperature : -20℃ to +70℃
·Degree of protection : IP 65( operating surface)
·Input voltage : 12V to 30V Wide range input voltage
·Anti interference : Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
·Product Size : W206 mm×H148 mm×36 mm
·Opening size : W191mm×H132.6 mm
