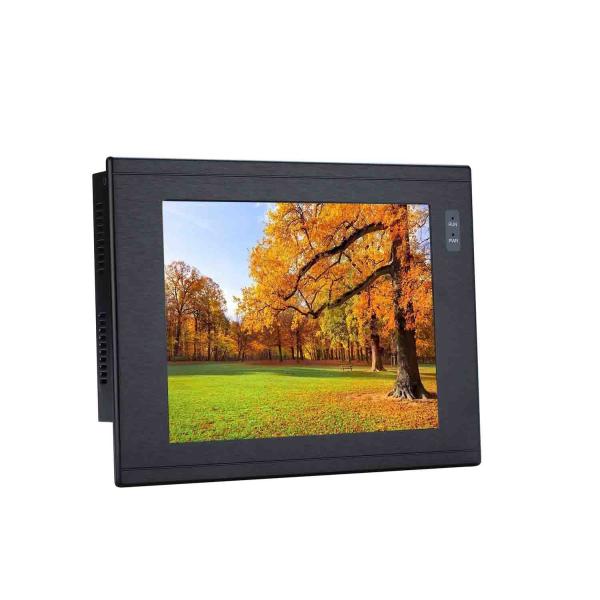

OEM / ODM Embedded Touch Monitor Resistive LCD Touch Screen Panel
OEM / ODM Embedded Touch Monitor Resistive LCD Touch Screen Panel
Specifications
Brand Name :
LONGYU
Model Number :
LYA104K20I-R-BT
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Resolving power :
1024*768
CPU :
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Size :
10.4 "
Touch form :
four line Resistive touch
Luminance :
600 cd/ m²
Dimension :
W293mm×H222mm×54mm
Description

Product Description

10.4" 1024*768 HDMI Resistive LCD Panel Touch Screen Metal Case TFT Embedded OEM ODM Industrial Monitor

LYA104K20I-R-BT is an industrial-grade high-performance embedded integrated touch screen with the chip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.4-inch LED LCD display (with a resolution of 1024 * 768). Support for USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Product Feature

CPU processor:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ

Operating System:Android11.0

Running memory:2GB/4GB

EMMC:16GB/32GB/64GB/128GB

GPU:Mali-G52 1-Core-2EE

Material quality:Aluminum alloy panel, metal rear cover

Resolving power:1024 * 768

Luminance:600 cd/ m²

Touch form:four line Resistive touch

Dimension:W293mm×H222mm×54mm

IP protection grade:Industrial grade IP64 (operating face)

Power interface:3 PIN*2.54mm terminal DC24V provides power supply

Power input:12V-30V(Recommended value 24V)

Serial port:3 RS232,2 RS232 / RS485 / CAN switch;6-way TTL serial port (reuse with serial port)

Product Performance:

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 10.4 Inch
Resolving power 1024 * 768
Touch form four line Resistive touch
Luminance 600 cd/ m²
Angle of view Full perspective

Material

 Material quality Aluminum alloy panel, metal rear cover
Way to stall Embedded installation
Dimension W293mm×H222mm×54mm
IP protection grade Industrial grade IP64 (operating face)

Power

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12V-30V(Recommended value 24V)

Environmental Characteristics

 Working temperature -20℃ ~ 70℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

3 RS232,2 RS232 / RS485 / CAN switch;

6-way TTL serial port (reuse with serial port)
Audio interface Ear integrated interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
GPS The GPS function 4G module should be replaced
4G Expand mini PCIE 4G module
GPIO 4 input and output: 2 optical coupling input, 2 relay dry contact output;
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)
Application:
  • Industial automation
  • Intelligent forklift application
  • Tower crane monitor
  • Toll gate
  • Smart medicine
  • Car Compass
  • Smart storage
  • Recreational machines
