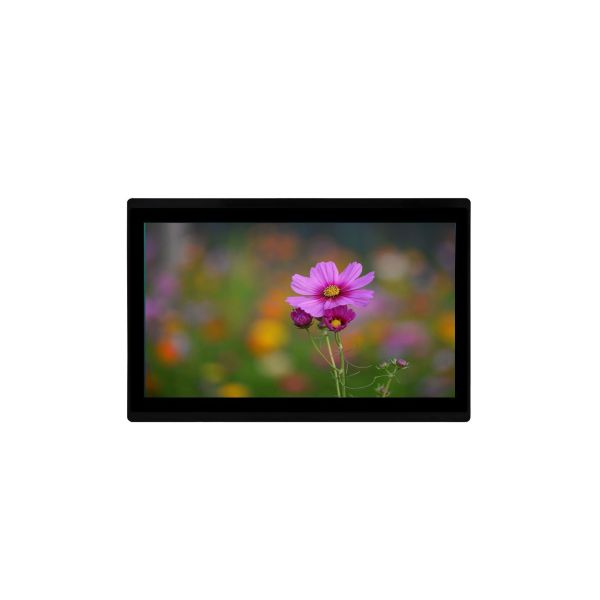

ODM Desktop Computer Touch Screen Monitor 1080P Capacitive Multitouch
ODM Desktop Computer Touch Screen Monitor 1080P Capacitive Multitouch
Specifications
Brand Name :
LONGYU
Model Number :
LY-A185
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Backlight technology :
Led
Power input :
DC 12V3A (50/60 Hz)
OEM/ODM :
YES
Connector :
VGA / DVI / HDMI
Luminance :
250 cd/m2
Touch form :
Projective capacitor (G + G)
Display color :
16.7M Colors
Input resolution :
1366*768
Description

Product description:

ODM Desktop Computer Touch Screen Monitor 1080P Capacitive Multitouch

LY-A185 Monitor HD display color realistic, excellent workmanship, quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.

SPECIFICATION

Backlight technology:Led

Luminance:250 cd/m2

Contrast ratio:Horizontal: 178 / Vertical: 178

Response time:25ms(GTG)

Display color:16.7M Colors

Display resolution:1366*768(16:9)

Frequency of refresh:60Hz

Input resolution:1366*768 @ 60Hz

Junctor:VGA / DVI / HDMI

Touch point number:10

Glass:3mm black screen screen tempered glass

Touch technology:Projective capacitor (G + G)

The pen type:Fingers, hands with gloves, and a conductive stylus

Waterproof performance:Touch surface is not affected by water droplets or water vapor

Response time:7ms-12ms

Product Performance:

  • LCD face-plate
Backlight technology Led
Luminance 250 cd/m2
Contrast ratio 3000:1
Visual Angle Horizontal: 178 / Vertical: 178
Response time 25ms(GTG)
Display color 16.7M Colors
Display resolution 1366*768 (16:9)
Frequency of refresh 60Hz
Input resolution 1366*768 @ 60Hz
Junctor VGA / DVI / HDMI
  • OSD function
OSD control button
OSD language English, Chinese
  • Touch screen parameters
Glass 3mm black screen screen tempered glass
Touch point number 10
Touch technology Projective capacitor (G + G)
The pen type Fingers, hands with gloves, and a conductive stylus
Waterproof performance Touch surface is not affected by water droplets or water vapor
Calibration No calibration tool
Response time 7ms-12ms
Interlinkage USB2.0(Type B socket)
Multitouch control protocol support Windows
Operating system Win 7/8,Android,Linux
  • Mechanical parameters

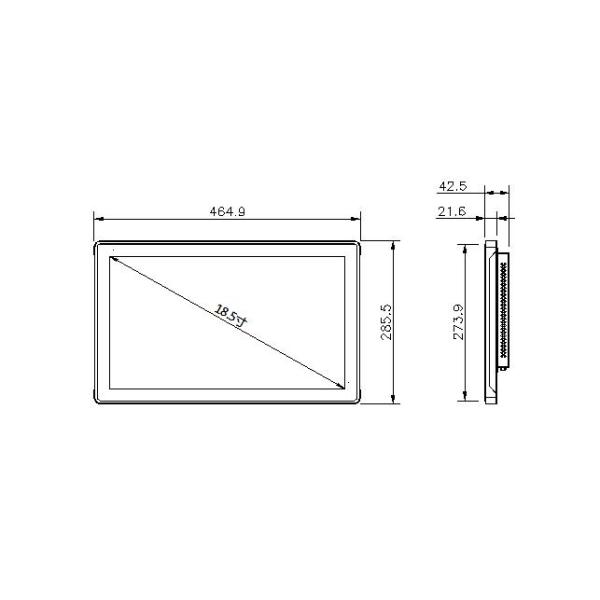

Dimension

465 x 285.5 x 42.5 mm
Open hole dimensions

522x 313.5mm
Weight (approx) 6 kg / 8 kg
Wall hanging form VESA,MIS-E,C
  • Electrical parameters
Power input DC in: DC 12V3A (50/60 Hz)
Power ≤ 25W (typ.)
Standby power ≤ 2W (typ.)
Built-in speakers N
  • Enviromental parameter
Work environment 0 °C ~ 50 °C, 90% RH
Storage environment -20 °C ~ 60 °C, 90% RH
  • Fitting
Other Bracket / power cord / VGA cord / USB cord / power adapter
