PRODUCT DESCRIPTION

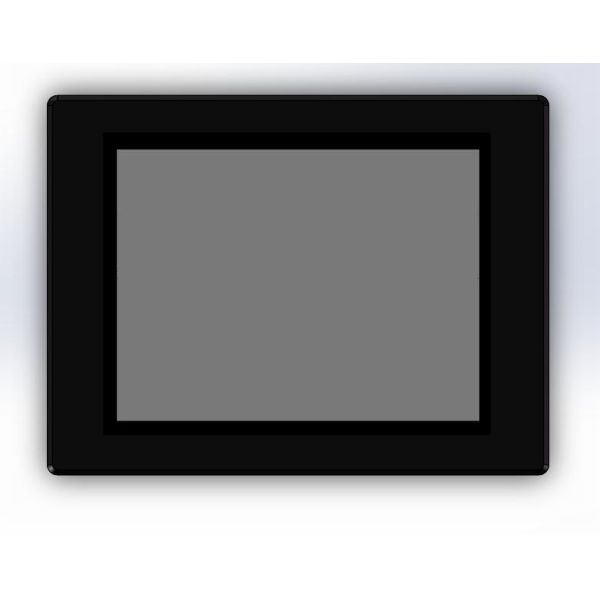

Wall-mounted Panel LCD Monitor Touch Screen 1024X 768 10.4 Inch Capacitive Touchscreen Monitor

PAL-104CHT is a set of low power consumption, multi-interface industrial display. This product is designed with 10.4-inch high brightness TFT LCD screen and capacitive touch screen.

FEATURES

Backlight technology:TFT LED

Visual Angle(H / V°):170/140

Backlight life(HRS):30,000 hrs

Luminance(cd/m²):350

Product size:10.4"

Display resolution:1024 x 768

Display color:16.7M or 256K Color

Power input:12 VDC @ 5A

Way to stall:Embedded, wall-mounted

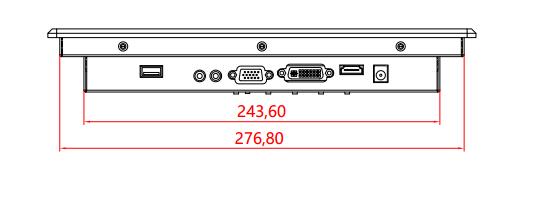

Dimension:293 x 222x 43.2mm

Hole size:278 x207mm

DisplayPort:1 X HDMI, 1 X DVI, 1 X VGA

Touch interface:USB

Working environment:-20 ~ 60° C

Storage environment:-20 ~ 70° C

Working humidity:5 ~ 85% @ 40°C (Non-condensing)

Vibration protection:5 ~ 500 Hz, 1 GRMS Random vibrations

SPECIFICATION
