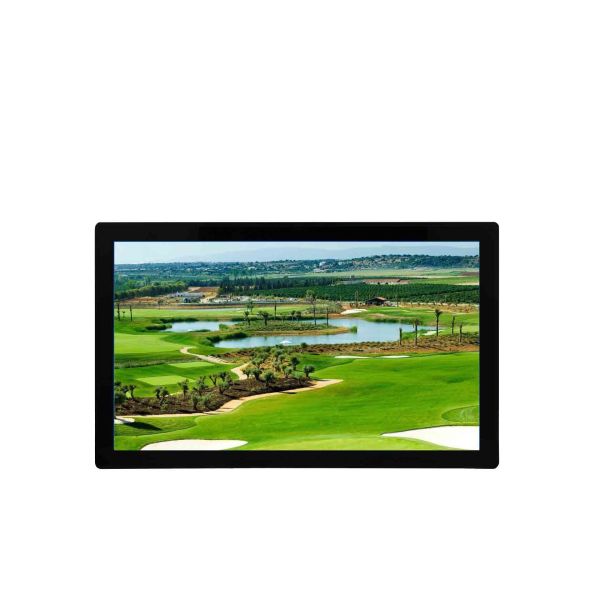

Capacitive Open Frame LCD Touch Screen Monitors 27 Inch 4K ROHS
Capacitive Open Frame LCD Touch Screen Monitors 27 Inch 4K ROHS
Specifications
Brand Name :
LONGYU
Model Number :
LY-A27
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Backlight technology :
Led
Contrast ratio :
3000:1
Power input :
DC 12V3A (50/60 Hz)
Display resolution :
16:9
Connector :
VGA / DVI / HDMI
Luminance :
≥250 cd/m2
Description

PRODUCT DESCRIPTION

Capacitive Open Frame LCD Touch Screen Monitors 27 Inch 4K ROHS

LY-A27 Monitor HD display color realistic, excellent workmanship, quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.

SPECIFICATION

Backlight technology:Led

Luminance:≥250 cd/m2

Contrast ratio:Horizontal: 178 / Vertical: 178

Response time:25ms(GTG)

Display color:16.7M

Display resolution:1920x1080

Frequency of refresh:60Hz

Input resolution:1920x1080

Junctor:VGA / DVI / HDMI

Touch point number:10

Glass:3mm black screen screen tempered glass

Touch technology:Projective capacitor (G + G)

The pen type:Fingers, hands with gloves, and a conductive stylus

Waterproof performance:Touch surface is not affected by water droplets or water vapor

Response time:7ms-12ms

Interlinkage:USB2.0(Type B socket)

Multitouch control protocol support:Windows

Dimension:622.3 x 401 x 42.5 mm

Packing measurement:685 x 155 x 475 mm

Product Performance:

  • LCD face-plate
Backlight technology Led
Luminance ≥250 cd/m2
Contrast ratio 3000:1
Visual Angle Horizontal: 178 / Vertical: 178
Response time 25ms(GTG)
Display color 16.7M Colors
Display resolution 1920x1080 (16:9)
Frequency of refresh 60Hz
Input resolution 1920x1080 @ 60Hz
Junctor VGA / DVI / HDMI
  • OSD function
OSD control button
OSD language English, Chinese
  • Touch screen parameters
Glass 3mm black screen screen tempered glass
Touch point number 10
Touch technology Projective capacitor (G + G)
The pen type Fingers, hands with gloves, and a conductive stylus
Waterproof performance Touch surface is not affected by water droplets or water vapor
Calibration No calibration tool
Response time 7ms-12ms
Interlinkage USB2.0(Type B socket)
Multitouch control protocol support Windows
Operating system Win 7/8,Android,Linux
  • Mechanical parameters
Dimension

622.3 x 401 x 42.5 mm
Packing measurement

685 x 155 x 475 mm
Weight (approx) 6 kg / 8 kg
Wall hanging form VESA,MIS-E,C
  • Electrical parameters
Power input DC in: DC 12V3A (50/60 Hz)
Power ≤ 25W (typ.)
Standby power ≤ 2W (typ.)
Built-in speakers N
  • Enviromental parameter
Work environment 0 °C ~ 50 °C, 90% RH
Storage environment -20 °C ~ 60 °C, 90% RH
  • Fitting
Other Bracket / power cord / VGA cord / USB cord / power adapter
