Emmc Industrial Android Tablet Touchscreen Windows Touch Screen Tablet 64GB
Emmc Industrial Android Tablet Touchscreen Windows Touch Screen Tablet 64GB
Emmc Industrial Android Tablet Touchscreen Windows Touch Screen Tablet 64GB
Emmc Industrial Android Tablet Touchscreen Windows Touch Screen Tablet 64GB
Specifications
Brand Name :
LONGYU
Model Number :
LYA150K20S-W
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Size :
15 inch
Operating System :
Android11.0/Ubuntu18.04/Linux 4.19
CPU :
Cortex A55
Power input :
12-30V Recommended value of 24V
Luminance :
350cd/ m²
Gigabit Ethernet interface :
1-Route 10 / 100 Mbps Ethernet port
Description

Product Description

15" Touchscreen Display 4GB RAM 64GB Emmc WiFi HDMI Windows Touch Screen Rk3568 Android

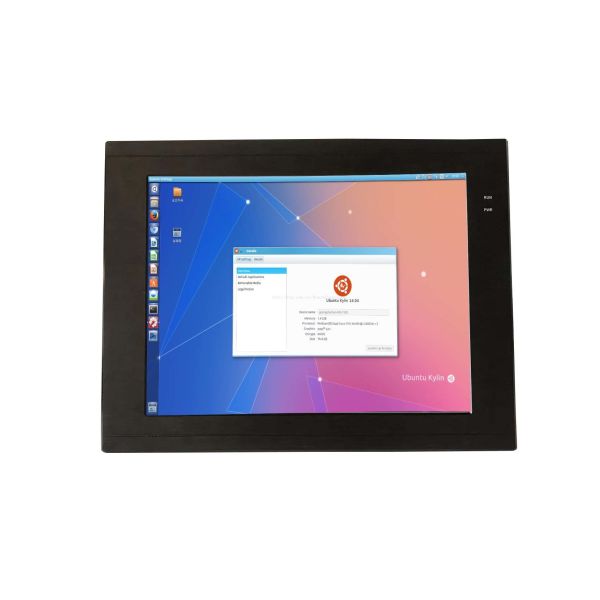

LYA150K20S-W is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 15-inch LED LCD display and a 10-point capacitive touch screen. It supports USB, Ethernet, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Product Performance

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 15 Inch
Touch form Capactive 10 touch
Luminance 350 cd/ m²
Angle of view Full perspective

Material

 Material quality Plastic face frame, metal back cover
Way to stall Flat, outer, embedded
IP protection grade Industrial grade IP65 dustproof and water proof (operating face)

Power

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12-30V Recommended value of 24V

Environmental Characteristics

 Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

2 RS232,2 RS485 / 2 CAN switch;
Audio interface Built-in 1 way 8 euro 5W dual channel speaker output; One 3.5mm audio output and one 3.5mm microphone input
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
4G interface The GPS function 4G module should be replaced
GPIO 4-way GPIO
USB2.0 3*USB 2.0
USB3.0 1 Vertical USB 3.0 (switch through dial switch)

APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
