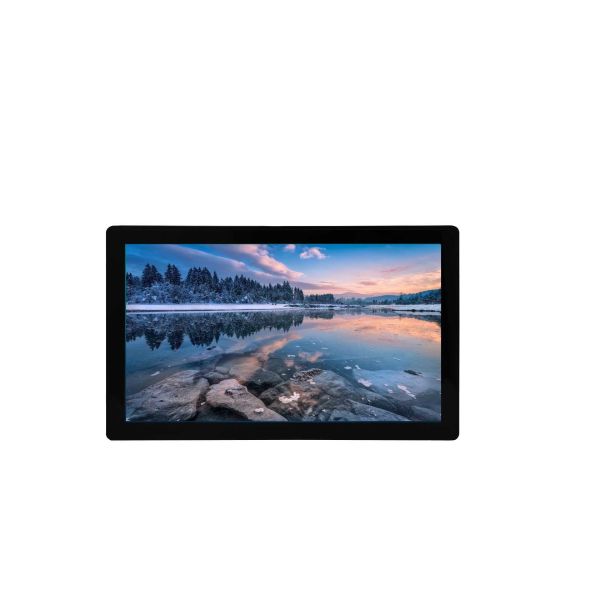

Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Specifications
Brand Name :
LONGYU
Model Number :
LYA236K20C-BT
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Luminance :
300 cd/ m²
Touch form :
Capactive 10 touch
CPU :
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Size :
23.6 Inch
GPU :
Mali-G52 1-Core-2EE
Product size :
586 * 358 * 48mm
Description

Product Description

23.6 inch big size Capacitive Touch Screen Pc Embedded Industrial Panel PC

LYA236K20C-BT is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 23.6-inch LED LCD display (resolution of 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

  • High contrast color TFT LCD display supports resolution up to 1920*1080
  • RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
  • Android11.0/Ubuntu18.04/Linux 4.19
  • Capactive 10 touch
  • Industrial grade IP65 dustproof and water proof (operating face)
  • 2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
  • 1 Route 10 / 100 / 1000 Mbps Ethernet port
  • 12-30V Recommended value of 24V
  • Product size:586 * 358 * 48mm

Product Performance:

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 23.6 Inch
Resolving power 1920 * 1080
Touch form Capactive 10 touch
Luminance 300 cd/ m²(Select a 450cd / m² s)
Angle of view Full perspective

Material

 Material quality Plastic face frame, metal back cover
Way to stall Flat, outer, embedded
IP protection grade Industrial grade IP65 dustproof and water proof (operating face)

Power

 Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12-30V Recommended value of 24V

Environmental Characteristics

 Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

2 RS232,2 RS232 / RS485 switch;

6-way TTL serial port (reuse with serial port)
Audio interface 1-way MIC interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
GPS The GPS function 4G module should be replaced
4G Expand the miniPCIE 4G module
GPIO 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)

Application:
  • Industial automation
  • Intelligent forklift application
  • Tower crane monitor
  • Toll gate
  • Smart medicine
  • Car Compass
  • Smart storage
  • Recreational machines
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc
