Rugged Industrial Waterproof Tablet Computer Dustproof IP65 18.5 Inch
Rugged Industrial Waterproof Tablet Computer Dustproof IP65 18.5 Inch
Rugged Industrial Waterproof Tablet Computer Dustproof IP65 18.5 Inch
Rugged Industrial Waterproof Tablet Computer Dustproof IP65 18.5 Inch
Specifications
Brand Name :
LONGYU
Model Number :
LYA185K20C-W-BT
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Size :
18.5 inch
Gigabit Ethernet interface :
1-Route 10 / 100 Mbps Ethernet port
GPU :
Mali-G52 1-Core-2EE
Product size :
465 * 286 * 46.5mm
Resolving power :
1366 * 768
Operating humidity :
5-90 RH%
Description

Product Description

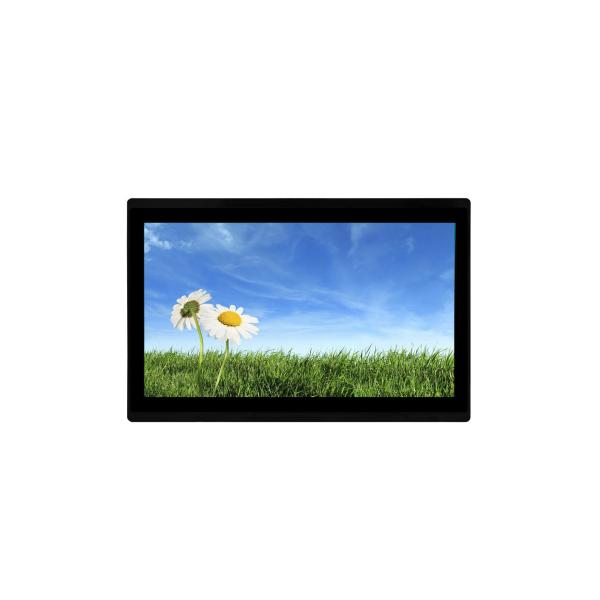

18.5 Inch Wall Rack Mount Rugged IP65 Waterproof Tablet Computer Touch Screen Panel Industrial All in One PC

LYA185K20C-W-BT is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 18.5-inch LED LCD display (resolution 1366 * 768) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications.

Feature:

  • High contrast color TFT LCD display supports resolution up to 1366*768
  • RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
  • Capactive 10 touch
  • Industrial grade IP65 dustproof and water proof (operating face)
  • 3 PIN*2.54mm terminal DC24V provides power supply
  • 2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
  • 1 Route 10 / 100 / 1000 Mbps Ethernet port
  • 12-30V Recommended value of 24V
  • Size:18.5 Inch
  • Resolving power:1366 * 768
  • Angle of view:Full perspective
  • Material quality:Plastic face frame, metal back cover
  • Way to stall:Flat, outer, embedded
  • Product size:465 * 286 * 46.5mm
  • Working temperature:-10℃ ~ 60℃
  • Storage temperature:-20℃ ~ 70℃
  • Operating humidity:5-90 RH%

Product Performance

Performance Detail

System

 CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE

Display

 Size 18.5 Inch
Resolving power

1366 * 768
Touch form

Capactive 10 touch
Luminance 300 cd/ m²
Angle of view Full perspective

Material

 Material quality

Plastic face frame, metal back cover
Way to stall

Flat, outer, embedded
Product size

465 * 286 * 46.5mm
IP protection grade Industrial grade IP65 (operating face)

Power

 Power interface

3 PIN*2.54mm terminal DC24V provides power supply
Power input 12V-30V(Recommended value 24V)

Environmental Characteristics

 Working temperature

-10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

2 RS232,2 RS232 / RS485/CAN switch;

5-way TTL serial port (reuse with serial port)
Audio Interface

1-way MIC interface
LAN 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
GPS The GPS function 4G module should be replaced
4G Expand the mini PCIE 4G module
GPIO

4-way GPIO, IO direction is input and output configurable, IO level is 5.0V;
USB2.0

1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)
