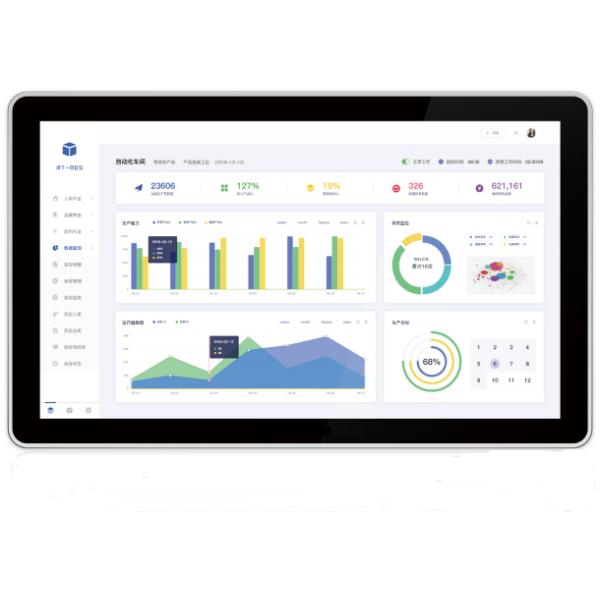

Capacitive Industrial Waterproof Tablet 21.5 Inch LCD Touch Screen Tablet RoHS
Capacitive Industrial Waterproof Tablet 21.5 Inch LCD Touch Screen Tablet RoHS
Specifications
Brand Name :
LONGYU
Model Number :
DIPA215C-A
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
TBA
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Work Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
CPU :
Intel®Celeron™ J900
Type :
21.5" Full HD TFT
Respond time :
< 5ms
Resolution ratio :
1920*1080
Backlight life :
30000hrs
MaximPower Consumption :
35W
Pixel pitch :
0.248×0.248
View angle :
(L) 89/ (R) 89 / (T) 89 / (B) 89
Description

Product Description

21.5 Inch IP65 LCD Touch Screen CORE j1900 Industrial Waterproof Tablet with WiFi, Bluetooth, 4G Module

Specifications:

● Intel® Celeron® J1900 main frequency 2.0Ghz quad-core four threads

● 4GB DDR3L high-speed memory, up to 16G support

● Dual Realtek 10M/100M/1000M adaptive Gigabit network chips

● 6 serial ports (up to 2 x RS485), 1*USB3.0,3*USB2.0, 1*HDMI, 1*VGA, Rich interface

● WiFi, Bluetooth, 4G wireless configuration optional

● Panel mounting hole size (recommended) 515mm x 312mm (W x H)

● Peripheral size 533mm x325mm x 52mm (W x H x D)

● Installation method: Support 75mm*75mm VESA installation and front embedded installation

● 10 point capacitive touch screen

● Working temperature: 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT)

Details:

Input voltage:12VDC (12-24VDC),Supports reverse connection protection

MaximPower:35W

Operating System:Windows10, Linux

Resolving power:1920*1080

Color Dispay:16.7MB

Backlight:LED

Backlight life:30000hrs

Luminance:250 cd/cm²

Product Performance:

System Parameter

 CPU Intel®Celeron™ J900
Frequency 2.0GHz
Running memory Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
EMMC 1 * mSATA(3.0)

I/O

 Network 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45 LAN Port
Mic Realtek® HDA Codec, with MIC/Line-out
USB 1x USB3.0/3 x USB2.0
Serial port 4 x RS-232； 2 x RS-232 / RS-485
expansion slot 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
I/O port 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN
physical characteristics Dimension (W x H x D)

533mm x325mm x 52mm
hole size (W x H)

515mm x 312mm
Net Weight 3.56kg
Operating System Operating System Windows10, Linux
Power Input voltage 12VDC (12-24VDC),Supports reverse connection protection
MaximPower Consumption 35W

Display

 screen 21.5" Full HD TFT
Resolving power 1920*1080
Color Dispay 16.7MB
Backlight LED
Backlight life 30000hrs
Pixel pitch

0.248*0.248
Luminance 250 cd/cm²
Contrast 1000 : 1
View angle (L) 89 / (R) 89 / (T) 89 / (B) 89

Environmental parameter

 Working temperature 0 ~ 45° C (32~113°F)
0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT)
Operating Temperature -20 ~ 60° C (-4 ~ 140°F)
Relative humidity 10~95% RH@40°C,non-condensing
Vibration SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis
EMC CE/FCC Class B
waterproof IP65
