EV190WPM-N10 BOE original 1680*1050 resolution LVDS 30 pins 19.0 inch lcd module for Medical Imaging
EV190WPM-N10 BOE original 1680*1050 resolution LVDS 30 pins 19.0 inch lcd module for Medical Imaging
Specifications
Brand Name :
BOE
Model Number :
EV190WPM-N10
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
EV190WPM-N10
Diagonal Size :
19.0"
Resolution :
1680(RGB)×1050, WSXGA+ 104PPI
Active Area :
409.5(W)×255.938(H) mm
Bezel Opening :
413.9(W)×260.3(H) mm
Outline Dim. :
444(W)×283.3(H)×16(D) mm
Response Time :
25 (Typ.)(Tr+Td)
Operating Mode :
HADS, Normally Black, Transmissive
Weight :
1.65Kgs (Typ.)
Designed For :
Medical Imaging
Description

EV190WPM-N10 BOE original 1680*1050 resolution LVDS 30 pins 19.0 inch lcd module for Medical Imaging

EV190WPM-N10 Product details :

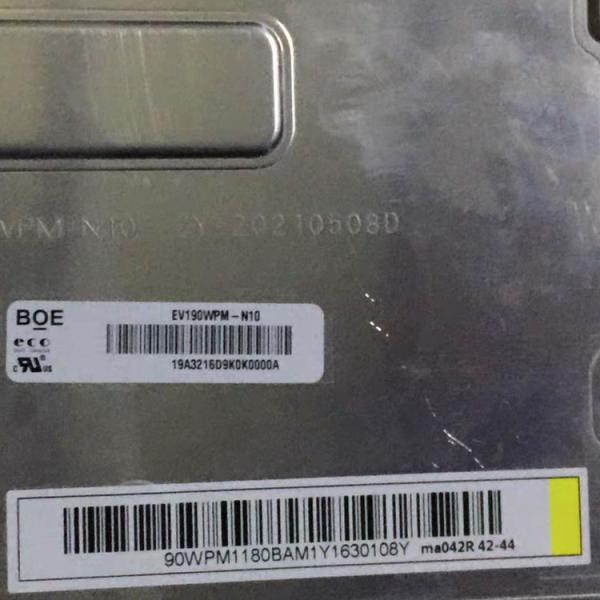

BOE LCD Screen EV190WPM-N10
Brand BOE
Model P/N EV190WPM-N10
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1680(RGB)×1050, WSXGA+ 104PPI
Pixel Format RGB Vertical Stripe
Active Area 409.5(W)×255.938(H) mm
Bezel Opening 413.9(W)×260.3(H) mm
Outline Size 444(W)×283.3(H) ×16(D) mm
Surface Antiglare (Haze 25%)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode HADS, Normally Black, Transmissive
Best View on Symmetry
Response Time 25 (Typ.)(Tr+Td)
Display Colors 16.7M 73% NTSC
Lamp Type WLED , 30K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Weight 1.65Kgs (Typ.)
Application Medical Imaging
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 12V (Typ.)
Environment

Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
EV190WPM-N10 BOE original 1680*1050 resolution LVDS 30 pins 19.0 inch lcd module for Medical Imaging

EV190WPM-N10 Friendly Reminder :


- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.


- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.


- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.

EV190WPM-N10 Shipping and Package :
EV190WPM-N10 BOE original 1680*1050 resolution LVDS 30 pins 19.0 inch lcd module for Medical Imaging

EV190WPM-N10 Shipping time:

We try our best to ship out same day for payment cleared before 17.00 PM (Beijing Time) ,otherwise we will ship on next working day.Order placed on weekend or holiday will be shipped on Monday or next working day.

EV190WPM-N10 Warranty & Return:


Thanks for your great support and trust to our products, we have very strict quality control system, so we have extremely low defect rate.


As a responsible seller, we will try our best to solve every problem.

EV190WPM-N10 FAQ:

Q: How long is the warranty of EV190WPM-N10 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of EV190WPM-N10 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for EV190WPM-N10 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of EV190WPM-N10 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
