Specifications
Brand Name :
AUO
Model Number :
A070FW03 V7
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model P/N :
A070FW03 V7
Diagonal Size :
7.0"
Panel Type :
LCM, a-Si TFT-LCD
Resolution :
480(RGB)×234 76PPI
Display Area :
154.08(H)×86.58(V) mm
Outline(mm) :
164.9(H)×100(V)×6(D) mm
Brightness :
280 cd/m² (Typ.)
Used for :
Automotive Display Digital Photo Frame Portable DVD Player Video Door Phone
Description

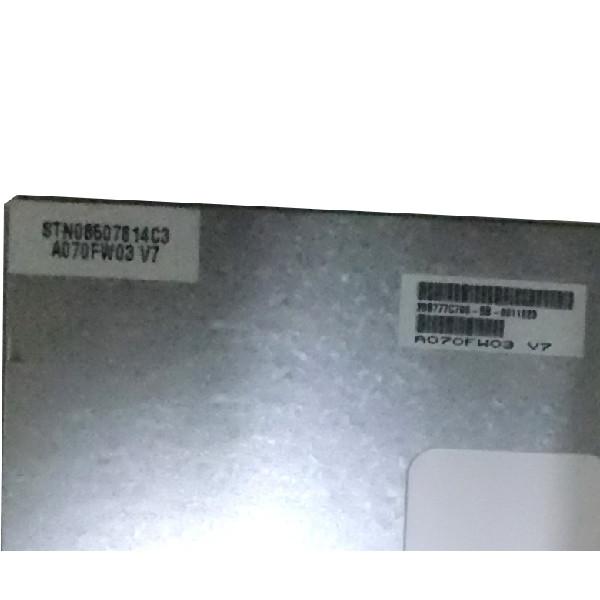

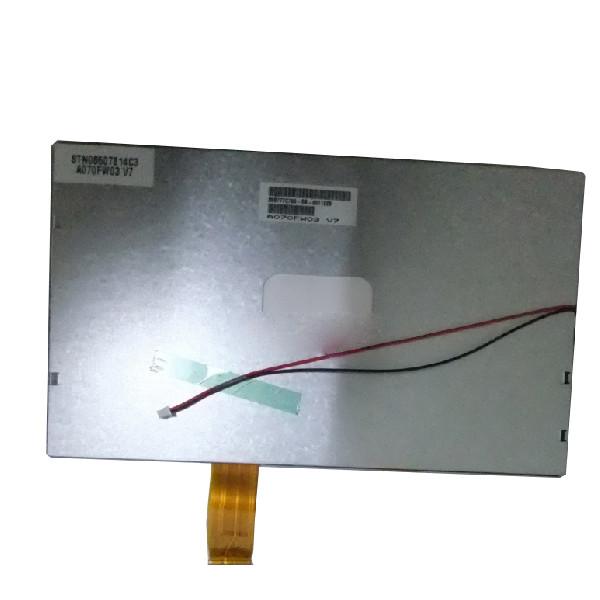

A070FW03 V7 with driver board lcd display 7 inch 480*234 26 pins lcd monitor

A070FW03 V7 Product details :

AUO LCD SCREEN A070FW03 V7
Panel Brand AUO
Model Name A070FW03 V7
Screen size 7.0 inch
Screen type a-Si TFT-LCD, LCD module
Resolution 480(RGB)×234, 76PPI
Pixel RGB Vertical Stripe
Display size 154.08(W)×86.58(H) mm
Outline Dim. 164.9(W)×100(H)×6(D) mm
Visual size 156.4(W)×89.0(H) mm
Surface Antiglare (Haze 25%)
Brightness 280 cd/m² (Typ.)
Contrast 400:1 (Typ.) (TM)
Best angle 6 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 65/65/40/65 (Typ.)(CR≥10
Responding 12/18 (Typ.)(Tr/Td) ms
Backlight type 3S7P WLED, 20K hours, without driver
Screen weight 154g (Typ.)
Apply to Automotive Display Digital Photo Frame Portable DVD Player Video Door Phone
Touch function Without
Signal system TFT Specific Analog RGB, 26 pins, FPC
Supply voltage 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Working: -20 ~ 70 °C; Storage: -30 ~ 85 °C
A070FW03 V7 with driver board lcd display 7 inch 480*234 26 pins lcd monitor
