Specifications
Brand Name :
OPTREX
Model Number :
DMF-50840NF-FW
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model P/N :
DMF-50840NF-FW
Diagonal Size :
5.7"
Resolution :
320×240, QVGA 70PPI
Active Area :
115.2(W)×86.4(H) mm
Bezel Opening :
120.0(W)×90.0(H) mm
Outline Dim. :
167.1(H)×109(V)×11(D) mm
Weight :
230g (Max.)
Designed For :
Industrial
Description

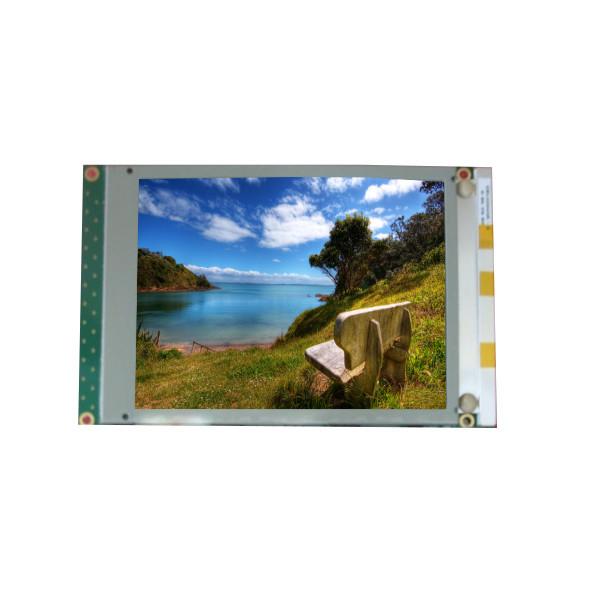

Original in Stock LCD Screen DMF-50840NF-FW 5.7inch STN Lcd module

DMF-50840NF-FW Product details :

OPTREX LCD SCREEN DMF-50840NF-FW
Panel Brand OPTREX
Panel Model DMF-50840NF-FW
Panel Size 5.7 inches
Panel Type FSTN-LCD , LCM
Resolution 320×240 QVGA 70PPI
Pixel Format Rectangle
Display Area 115.2(horizontal)×86.4(vertical) mm
Bezel Opening 120.0(horizontal)×90.0(vertical) mm
Outline Size 167.1 (horizontal) × 109 (vertical) × 11 (thickness) mm
Brightness 50 cd/m² (Typ.)
Contrast Ratio 15:1 (Typ.) (Transmission)
Viewing Angle 40/50/30/40 (Typ.) (CR≥2)
Display Mode STN, Black/White (Negative), Transmissive
Best View on 6 o'clock
Response Time 420/210 (Typ.)(Tr/Td) ms
Display Colors Monochrome
Lamp Type CCFL [1 pcs] , 25K hours, no driver
Frequency 75Hz
Touch Screen Without
Panel Weight 230g (Max.)
Designed For Industrial
Signal Interface 14 pins Parallel Data (4-bit) , FPC
Environment Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
Original in Stock LCD Screen DMF-50840NF-FW 5.7inch STN Lcd module

DMF-50840NF-FW Hello friends, before you order:

Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;


Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.


All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.


For all problems, please do not leave negative feedback or public disputes before contacting us, please send us a message through Alibaba, and we will immediately solve the problem for you.


Your satisfaction is our goal! Thank you.

DMF-50840NF-FW Shipping and Package :

Industrial Monochrome LCD Screen DMF-50840NF-FW 5.7 Inch STN LCD Module

DMF-50840NF-FW About the goods:


Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for

DMF-50840NF-FW Return:

· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period

· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase

DMF-50840NF-FW Other policies:


If you need a lot of quantity, please contact us, will give you a favorable price.


We are not responsible for all taxes and import duties


Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!

DMF-50840NF-FW FAQ:

Q: Can you give me a discount if I need a large quantity of DMF-50840NF-FW ?

A:Of course!If you make a large order, we will give you a discount.

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How to make payment for OPTREX DMF-50840NF-FW ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of lcd DMF-50840NF-FW at a very low value ?

A: Yes , we can . pls inform us before shipping .
