Specifications
Brand Name :
NEC
Model Number :
NL6448BC26-09C
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model P/N :
NL6448BC26-09C
Diagonal Size :
8.4"
Resolution :
640(RGB)×480, VGA 95PPI
Active Area :
170.88(W)×128.16(H) mm
Bezel Opening :
174.0(W)×131.4(H) mm
Outline(mm) :
200(W)×152(H)×11(D)
Luminance :
750 (Typ.)(cd/m²)
Contrast Ratio :
600 : 1 (Typ.) (TM)
Mass :
330/350g (Typ./Max.)
Used for :
Industrial
Description

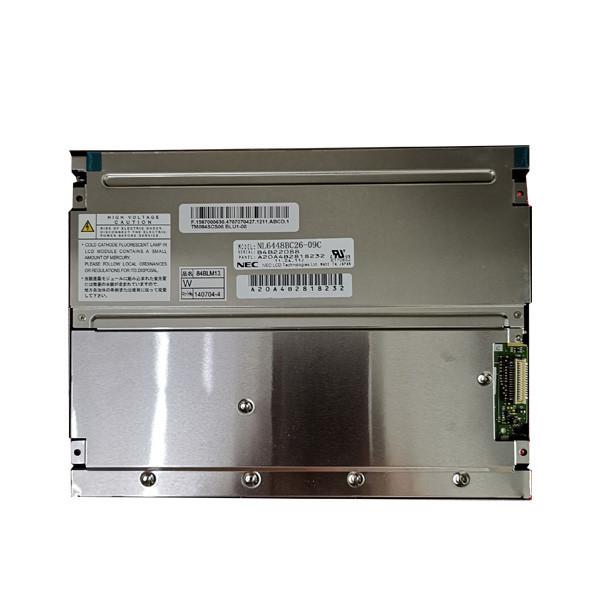

NEC TFT-LCD NL6448BC26-09C 8.4 inch lcd display Panel 640*480 lcd screen module

NL6448BC26-09C Product details :

NEC LCD Screen NL6448BC26-09C
Manufacturer NEC
Model Name NL6448BC26-09C
Screen Size 8.4 inches
Types of a-Si TFT-LCD, LCD module
Resolution 640(RGB)×480 [VGA] 95PPI
Pixel configuration RGB vertical bar
Display size 170.88 × 128.16 mm (H×V)
physical dimension 200 × 152 × 11 mm (H×V×D)
Visual size 174.0 × 131.4 mm (H×V)
Surface treatment Clear, Hard coating (2H), anti-reflection treatment
Brightness (cd/m²) 750 (Typ.)
Contrast 600: 1 (Typ.) [Transmission]
Best angle 6 o'clock
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/80/60 (Typ.)(CR≥10)
responding speed 6/19 (Typ.)(Tr/Td) ms
Number of colors 262K, 40% NTSC
Backlight type 2 pcs CCFL, 50K hours, no driver
Screen weight 330/350g (Typ./Max.)
Used for Industrial
Refresh rate 60Hz
Touch function No touch
signal system CMOS (1 ch, 6-bit), connector, 31 pins
Supply voltage 3.3/5.0V (Typ.)
Maximum rating Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²)
NEC TFT-LCD NL6448BC26-09C 8.4 inch lcd display Panel 640*480 lcd screen module

NL6448BC26-09C Payment Information:


Escrow pls make order straight.

Other payment terms, like Paypal, T-T etc, pls contact me.

NL6448BC26-09C Shippment & Packing

NEC TFT-LCD NL6448BC26-09C 8.4 inch lcd display Panel 640*480 lcd screen module

NL6448BC26-09C Shipment:

When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.(Under special circumstances, we will promptly notify you of the delivery time)

We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

NL6448BC26-09C Warranty:

1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.

2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.

3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.

4.For any items, please send by EMS or your local post when you send back.

NL6448BC26-09C Buyers pay attention:

1.Receipt of goods at the same time remind you once again open in front of express cargo shape, appearance, the number of checks to sign. For example: whether the modification would not affect the use, especially liquid crystal without damage, whether or not with the number of orders and invoices you actually consistent. If questions arise, like all with the shipper shall promptly verify the situation and inform the courier or reject the problem parts.

2.You sign for the goods at the same time and the default security service items. Express left freight caused due to the emergence of any appearance deformation, damage, the number of discrepancies and so I will not be responsible

3.The receipt of the goods please do not forget the timely completion of the test confirmed

4.When you receive the goods, especially the day of the test screen. (Some screens is not our responsibility to screen sellers simply squeeze will appear bruised. Do not install static bags of dirt into the dust will enter backlit black spots. So besides the screen appears bright line, black and white, the other is not covered by the warranty Huaping range)

5.Customer unconditional return I will be charged 20% payment as compensation (the customer's own reasons for return, and no quality problems)

NL6448BC26-09C FAQ:

Q: How long is the warranty of NL6448BC26-09C ?

A: 90days warranty .

Q: How can I trace my order of NEC NL6448BC26-09C ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order NL6448BC26-09C now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for NL6448BC26-09C ?

A: Of course!sample order is welcome !
