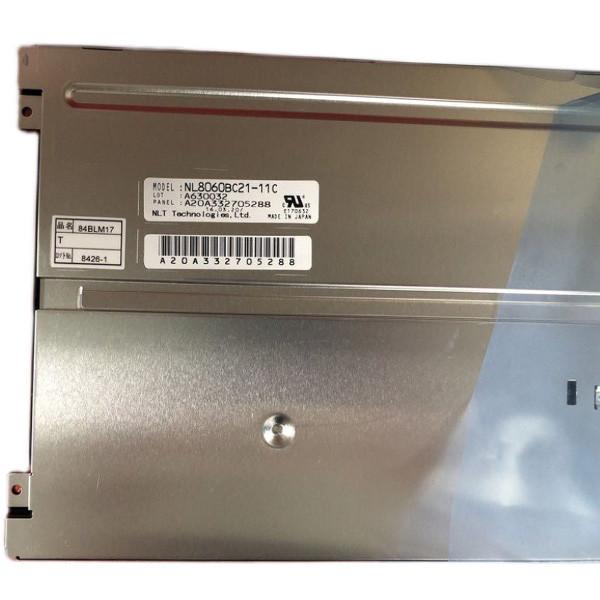

NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
Specifications
Brand Name :
NEC
Model Number :
NL8060BC21-11C
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model P/N :
NL8060BC21-11C
Diagonal Size :
8.4"
Resolution :
800(RGB)×600, SVGA 119PPI
Active Area :
170.4(W)×127.8(H) mm
Bezel Opening :
174.0(W)×131.4(H) mm
Outline Size :
200(W)×152(H) ×8.7(D) mm
Brightness :
800 cd/m² (Typ.)
Contrast Ratio :
800:1 (Typ.) (TM)
Panel Weight :
260/280g (Typ./Max.)
Application :
Industrial
Description

NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display

NL8060BC21-11C Product details :

NEC LCD Screen NL8060BC21-11C
Manufacturer NEC
Model Name NL8060BC21-11C
Screen Size 8.4 inch
Screen type LCM, a-Si TFT-LCD
Resolution 800(RGB)*600 [SVGA] 119PPI
Pixel configuration RGB vertical bar
Display size 170.4 * 127.8 mm (H*V)
physical dimension 200 * 152 * 8.7 mm (H*V*D)
Visual size 174.0 * 131.4 mm (H*V)
Surface treatment Clear, Hard coating (2H), anti-reflection treatment
Brightness (cd/m²) 800 (Typ.)
Contrast 800: 1 (Typ.) [Transmission]
Optical mode TN, normally white display, transmissive
Viewing angle 80/80/80/80 (Typ.)(CR≥10)
responding speed 3/15 (Typ.)(Tr/Td) ms
Number of colors 262K/16.7M, 40% NTSC
Backlight type 4 strings WLED, 70K hours, no driver
Screen weight 260/280g (Typ./Max.)
Refresh rate 60Hz
Touch function No touch
signal system LVDS (1 ch, 6/8-bit), connector, 20 pins
Supply voltage 3.3V (Typ.)
Maximum rating Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display

NL8060BC21-11C About Payment Information:


We accept Escrow service.

NL8060BC21-11C About Customs Duty & Handling Fee:


For all customers` orders, we do not charge handing fee, even 1pcs part.

When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.

NL8060BC21-11C Shippment & Packing

NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display

NL8060BC21-11C Shipping:

We will test them strictly before shipping.

We will ship it in 1-3 working days after your paying. We only ship according to the shipping address. If you want to change shipping address, please contact us in advance in time.

NL8060BC21-11C Delivery time is approx:

United States/ Canada/United Kingdom / France / Spain/ Switzerland/ New Zealand maytake 14-20 working days.

Eastern Europemay take up to 16-30 working days.


Italy/ Brazil/ South America/Russia may take up to 30-50 working days.


Shipped by DHL Express (Need 3-6 working days to arrive) Please contact for lower DHL price.

NL8060BC21-11C FAQ:

Q: How long will I receive my goods NL8060BC21-11C ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of NL8060BC21-11C ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of NL8060BC21-11C via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of NL8060BC21-11C ?

A: Of course!If you make a large order, we will give you a discount.
