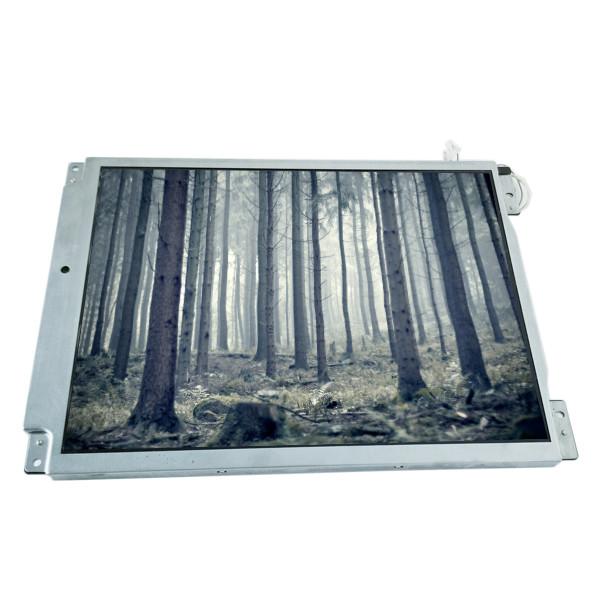

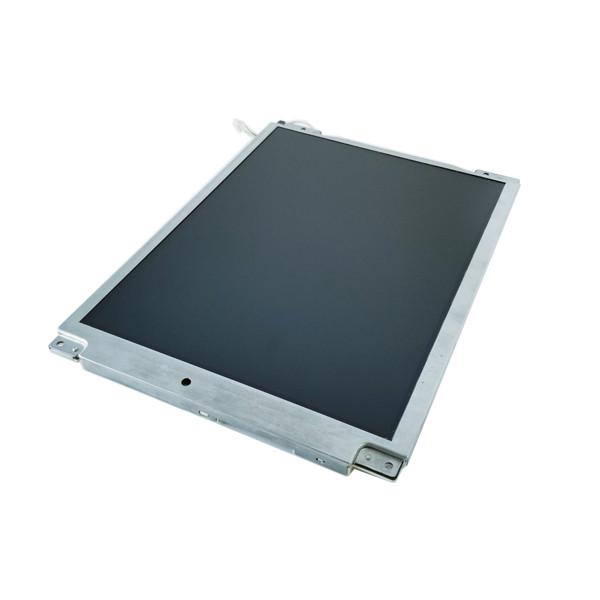

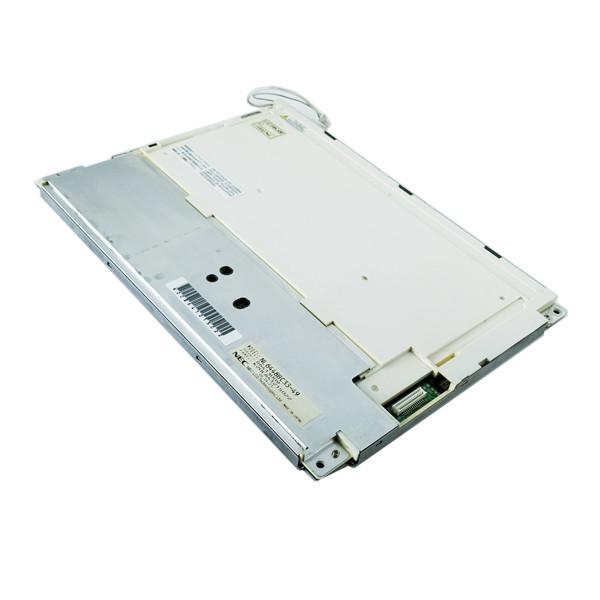

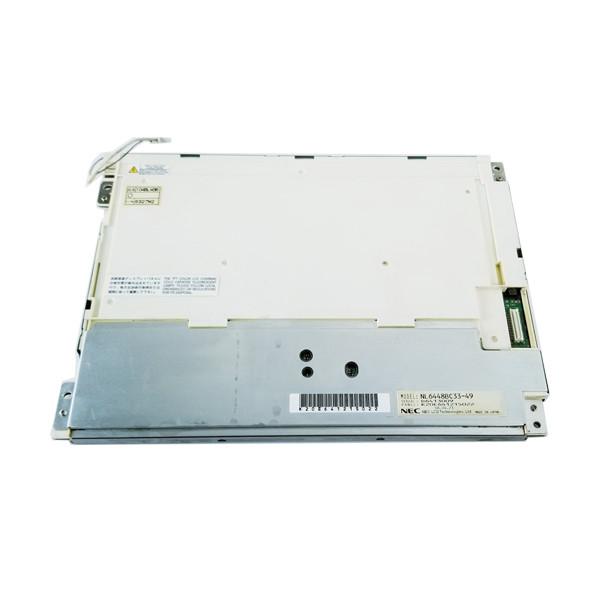

NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry
Specifications
Brand Name :
NEC
Model Number :
NL6448BC33-49
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
NL6448BC33-49
Diagonal Size :
10.4"
Resolution :
640(RGB)×480, VGA 76PPI
Active Area :
211.2(W)×158.4(H) mm
Response :
10/40 (Typ.)(Tr/Td)
Outline (mm) :
243(W)×185.1(H) ×11(D) mm
Viewing angle :
70/70/40/70 (Typ.)(CR≥10)
Work Modesource :
TN, Normally White, Transmissive
Signal Type :
CMOS (1 ch, 6-bit), connector, 31 pins
Contrast Ratio :
300:1 (Typ.) (TM)
Description

NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry


NL6448BC33-49 LCD Panel Product details :

NEC LCD Screen NL6448BC33-49
Manufacturer NEC
Model Name NL6448BC33-49
Screen Size 10.4inch
Panel Type a-Si TFT-LCD, LCM
Number of pixels 640(RGB)×480, VGA 76PPI
Pixel layout RGB vertical bar
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 216.2(W)×163.4(H) mm
Outline (mm) 243(W)×185.1(H) ×11(D) mm
Treatment Antiglare, Hard coating (2H)
Luminance 200 cd/m² (Typ.)
Contrast Ratio 300 : 1 (Typ.) (TM)
Viewing angle 70/70/40/70 (Typ.)(CR≥10)
Response 10/40 (Typ.)(Tr/Td)
Best View on 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 45% NTSC
Backlight 1 pcs CCFL , Without Driver
Mass 530/550g (Typ./Max.)
Used for Industrial
Refresh Rate 60Hz
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit) , 31 pins Connector
Voltage Supply 3.3/5.0V (Typ.)
Max. Ratings Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 75 °C
NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry

NL6448BC33-49 LCD Screen Specification :

Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.

Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.

Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.

NL6448BC33-49 LCD Panel Shipping and Package :

NL6448BC33-49 10.4inch 31 pins Connector LCD display screen For Industry

NL6448BC33-49 LCD Screen Return Policy:

Warranty Coverage:

Used products: 90 days warranty.


New products: 180 days warranty.


Please note that this warranty does not cover consumables.


We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)

NL6448BC33-49 LCD Panel FAQ :

Q: How long will I receive my goods NL6448BC33-49 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of NL6448BC33-49?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of NL6448BC33-49 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods NL6448BC33-49 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
