Specifications
Brand Name :
AUO
Model Number :
M270HW01 V1
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
M270HW01 V1
Resolution :
1920(RGB)×1080, FHD, 81PPI
Pixel Format :
RGB Vertical Stripe
Screen size :
27.0''
Display Area :
597.6(W)×336.15(H) mm
Outline Size :
630(W)×368.2(H) ×17.4(D) mm
Brightness :
400 cd/m² (Typ.)
Contrast Ratio :
1000:1 (Typ.) (TM)
Description

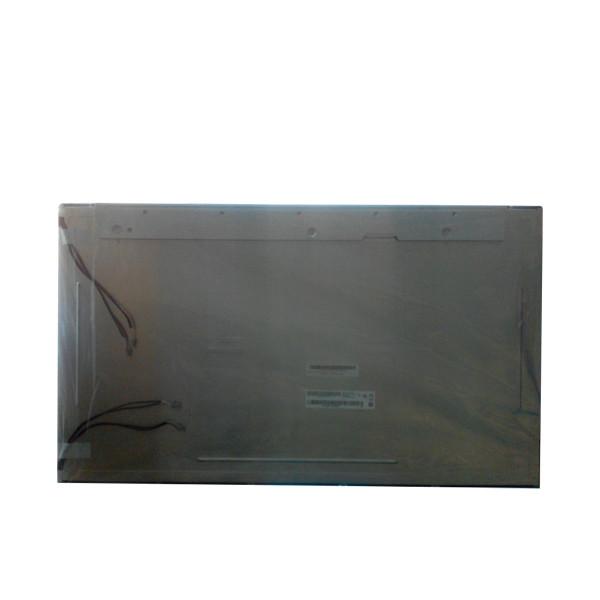

27.0 inch M270HW01 V1 30 pins 81PPI TFT LCD monitor

M270HW01 V1 LCD Panel Product details :

AUO LCD SCREEN M270HW01 V1
Panel Brand AUO
Panel Model M270HW01 V1
Panel Size 27.0"
Panel Type a-Si TFT-LCD , LCM
Resolution 1920(RGB)×1080, FHD, 81PPI
Pixel Format RGB Vertical Stripe
Display Area 597.6(W)×336.15(H) mm
Bezel Opening 603.9(W)×342.15(H) mm
Outline Size 630(W)×368.2(H) ×17.4(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 3.8/1.2 (Typ.)(Tr/Td)
Display Colors 16.7M 72% NTSC
Lamp Type 4 pcs CCFL , 50K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 3.80Kgs
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
27.0 inch M270HW01 V1 30 pins 81PPI TFT LCD monitor

Product Type:M270HW01 V1LCD Screen:

At our company, we take pride in offering excellent industrial LCD products. Occasionally, the images captured may not perfectly align with the product's logo due to upgrades or other factors. However, please rest assured that the product information, including electrical and mechanical properties, remains consistent. We apologize for any inconvenience caused by this discrepancy and appreciate your understanding.

Color Mismatch Disclaimer:

Please note that slight color deviations may occur in the LCD module due to various factors such as monitor color settings, lighting conditions, or background hues. While we strive to maintain color accuracy, we acknowledge that perceived differences may arise. If you believe that the item received does not match the expected color, we encourage you to reach out to us to discuss options for return or refund.

M270HW01 V1 LCD Panel Shipping and Package :

27.0 inch M270HW01 V1 30 pins 81PPI TFT LCD monitor

M270HW01 V1 LCD Screen Shipment:

Order Processing and Shipping:
Upon placing your order, kindly select your preferred shipping method and complete the payment, which includes the shipping fee. We endeavor to dispatch your items within 1-3 business days following the completion of your payment.

International Shipping Considerations:
Please be advised that we cannot guarantee specific delivery times for international shipments due to variations in customs clearing procedures across different countries. These differences may impact the speed at which your product undergoes inspection and clearance. We appreciate your patience and understanding in this regard.

Customs Fees and Duties:
It's important to note that buyers are responsible for any additional fees associated with customs clearance, including but not limited to customs fees, brokerage fees, duties, and taxes. In the event of refused shipments, buyers remain responsible for these charges.

Import Taxes:
Please be aware that the shipping cost does not cover any import taxes. Buyers are advised to acquaint themselves with their country's customs regulations and are responsible for any customs duties incurred as a result of the importation of our products.


M270HW01 V1 LCD Screen Returns Policy:

Return Period:
We offer a 15-day return window from the date of receipt of the items. Should you wish to return your purchase for any reason within this timeframe, we are happy to assist you with the process.

Condition of Returned Items:
To qualify for a refund, please ensure that the items are returned in their original condition. Any damage incurred to the items during the return transit may result in a deduction from the refund amount. We advise buyers to handle and package the items carefully to prevent damage during transportation.

Responsibility for Damaged or Lost Items:
In the event that returned items are damaged or lost during transit, the buyer assumes responsibility for such occurrences. We regret to inform you that a full refund will not be issued under these circumstances. We recommend that buyers file a claim with the logistic company to recover the costs associated with any damage or loss.

Shipping Fees for Returns:
Please note that the buyer is responsible for covering the shipping fees associated with returning the items. We kindly request that you arrange for the return shipment using a reliable and trackable shipping method.

M270HW01 V1 LCD Panel FAQ :

Q: How can I trace my order of M270HW01 V1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long will I receive my goods M270HW01 V1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT

.

Q: How to make payment of M270HW01 V1 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of M270HW01 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
