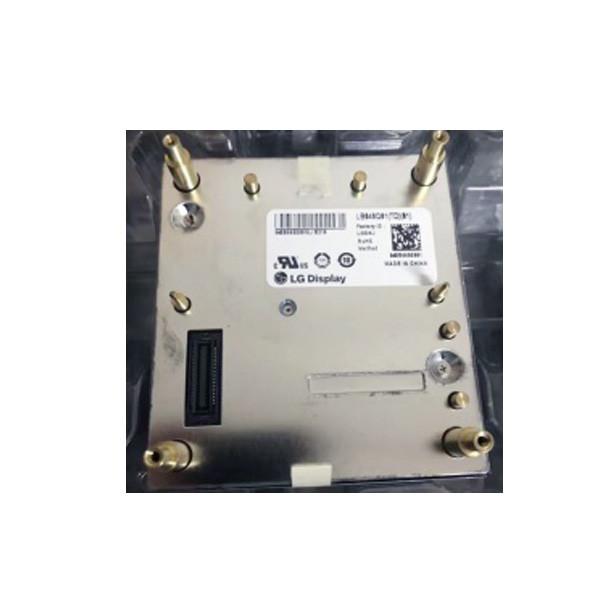

LB065WQ4 original 6.5 inch 400*240 LCD Screen Panel for LG
LB065WQ4 original 6.5 inch 400*240 LCD Screen Panel for LG
Specifications
Brand Name :
LG
Model Number :
LB065WQ4
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
LB065WQ4
Resolution :
400(RGB)×240, WQVGA 72PPI
Pixel Format :
RGB Vertical Stripe
Active Area :
143.4(W)×79.326(H) mm
Outline Dim. :
155.3(W)×97.3(H)(D) mm
Luminance :
450 cd/m² (Typ.)
Operating Mode :
TN, Normally White, Transmissive
Color Depth :
262K
Refresh Rate :
60Hz
Interface Type :
TTL (1 ch, 6-bit)
Description

LB065WQ4 original 6.5 inch 400*240 LCD Screen Panel for LG

LB065WQ4 LCD Panel Product details :

Brand LG
Model P/N LB065WQ4
Diagonal Size 6.5"
Panel Type a-Si TFT-LCD, LCM
Resolution 400(RGB)×240, WQVGA 72PPI
Pixel Format RGB Vertical Stripe
Active Area 143.4(W)×79.326(H) mm
Bezel Opening -
Outline Size 155.3(W)×97.3(H)(D) mm
Treatment -
Luminance 450 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10)
Response -
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K
Backlight 1 pcsCCFL
Mass -
Used for Automotive Display,Digital Photo Frame,Portable DVD Player,Video Door Phone
Refresh Rate 60Hz
Touchscreen -
Signal Type TTL (1 ch, 6-bit)
LB065WQ4 original 6.5 inch 400*240 LCD Screen Panel for LG

Precautions for Purchasing the LB065WQ4 LCD Panel:

Authenticity and Quality Assurance:

Our LCD screen is an original replacement specifically designed for GPS systems.


We maintain sufficient stock ensuring availability.


Each screen undergoes rigorous testing to ensure optimal performance.


Upon shipment, you'll receive a tracking number to monitor delivery progress.


Swift Processing and Dispatch:

Orders are processed promptly, with goods dispatched within 48 hours of payment completion.


Secure Packaging:

We prioritize the safe delivery of our products.


Each LCD screen is carefully packaged with multiple layers of protection:


Anti-static bag
Bubble bag
Carton


Installation Precautions:

Refrain from using adhesive to affix the screen until its functionality is confirmed.


We cannot accept returns or issue refunds for screens that have been glued in place.


Testing and Verification:

Before installation, conduct a comprehensive test of the LCD screen.


Record a video during testing to ensure proper functioning.


Installation should proceed only after confirming the screen's operational status.


In case of any malfunction, provide us with the test video to facilitate resolution.


Power Off Before Handling:

Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.
Failure to do so may result in malfunction or damage.


Handle with Care:

LCD screens are delicate and susceptible to damage.


Exercise caution during testing and installation processes to prevent mishaps.


These precautions are designed to ensure a smooth and satisfactory experience with our LCD panel.

LB065WQ4 LCD Panel Shipping and Package :LB065WQ4 original 6.5 inch 400*240 LCD Screen Panel for LG

Return & Refund Policy for LB065WQ4 LCD Panel:

Initial Steps:

Begin by verifying the tracking information provided on the designated tracking website to monitor the shipment's progress.


Contact Us:

Reach out to us via message, email, or through the trade manager platform to initiate the return or refund process.


Inspection:

Thoroughly examine both the package and the item upon receipt to ensure there are no discrepancies or damages.


Important Note:

Kindly be aware that defects resulting from human error, damage occurring after use, water damage, and similar issues are not covered under our guarantee policy.

LB065WQ4 LCD Panel FAQ :

Q: How long will I receive my goods LB065WQ4 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of LB065WQ4 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LB065WQ4?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .

Contact Information for LB065WQ4 LCD Panel :

For any inquiries or assistance, please reach out to us via WhatsApp. Our dedicated team is available during the following office hours, based on China HK working time:

Monday to Friday (excluding holidays)


9:00am to 12:00am
1:00pm to 6:00pm


Please note that responses to emails may be delayed outside of our office hours. We appreciate your understanding and encourage you to connect with us during our designated working hours for prompt assistance.
