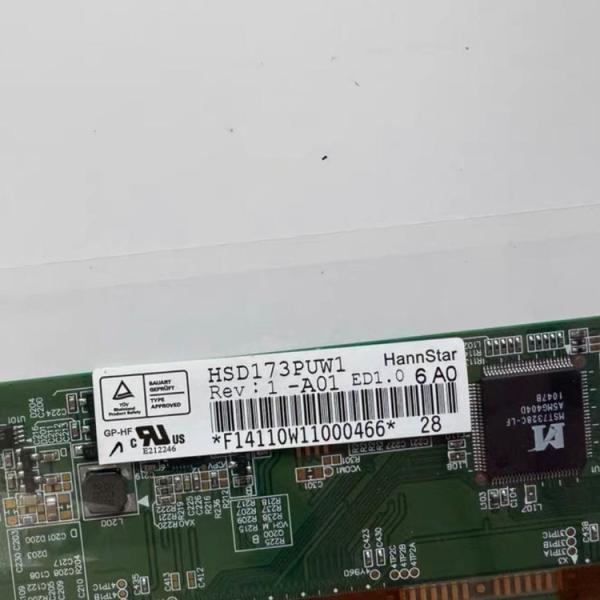

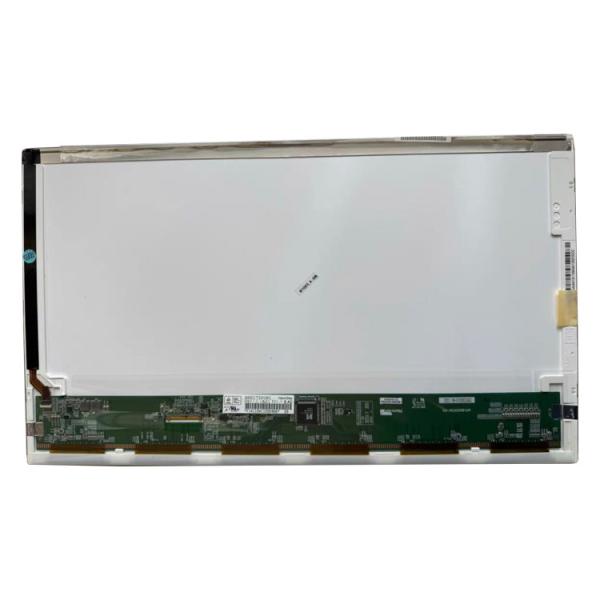

17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
Specifications
Brand Name :
HannStar
Model Number :
HSD173PUW1-A01
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
HSD173PUW1-A01
Diagonal Size :
17.3"
Resolution :
1920(RGB)×1080, FHD 127PPI
Active Area :
381.888(W)×214.812(H) mm
Bezel Opening :
386.05(W)×218.45(H) mm
Outline Dim. :
398.1(H)×232.8(V) ×5.8(D) mm
Treatment :
Glare (Haze 0%), Hard coating (3H)
Response Time :
2.4/5.6 (Typ.)(Tr/Td)
Form Style :
Wedge (PCBA Bent, T≥5.2mm)
Designed For :
Laptop
Description

17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display

HSD173PUW1-A01 LCD Panel Product details :

HannStar LCD Screen HSD173PUW1-A01
Panel Brand HannStar
Model P/N HSD173PUW1-A01
Diagonal Size 17.3"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 127PPI
Pixel Format RGB Vertical Stripe
Active Area 381.888(W)×214.812(H) mm
Bezel Opening 386.05(W)×218.45(H) mm
Outline Dim. 398.1(H)×232.8(V) ×5.8(D) mm
Treatment Glare (Haze 0%), Hard coating (3H)
Luminance 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 2.4/5.6 (Typ.)(Tr/Td)
Viewing Angle 80/80/60/75 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K 60% NTSC
Light Source WLED , 10K hours , With LED Driver
Form Style Wedge (PCBA Bent, T≥5.2mm)
Designed For Laptop
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 6-bit) , 40 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display
HSD173PUW1-A01 LCD Screen Payment Terms:
Payment Options: YONGS provides a preferred and secure payment method. We accept payments through YONGS, PayPal, and various other payment terms. Additionally, you have the option to pay via credit card through PayPal for added convenience and security.
Import Duties and Taxes: Please note that products may be subject to import duties, taxes, and other charges. These fees are not included in the product price or shipping charges and are the sole responsibility of the recipient.
Order Cancellation Policy: Orders that remain unpaid beyond 7 business days will be automatically cancelled. We kindly ask our customers to complete their payment within this timeframe to ensure timely processing of their orders.

HSD173PUW1-A01 LCD Panel Shipping and Package :17.3 inch laptop LCD panel HSD173PUW1-A01 LCD Screen Display

HSD173PUW1-A01 LCD Screen Product Warranty Information:
Thank you for choosing YONGS products. We are committed to providing high-quality LCD screens to our customers. Please review the following warranty information:
Warranty Period: YONGS offers a warranty period of 120 days against any manufacturer defects. These defects include issues such as fuzziness, image problems, V-lines, or H-lines.
Dead Pixel Policy: Our warranty covers LCD screens with 3-5 dead pixels, in accordance with the ISO 13406-2 norm. If you disagree with this norm, we kindly ask you to refrain from purchasing this product.
We stand behind the quality of our products and aim to ensure your satisfaction with your purchase. Should you encounter any issues within the warranty period, please don't hesitate to contact us for assistance.
Thank you for your trust in YONGS products.
HSD173PUW1-A01 LCD Screen Return Policy:
Thank you for choosing our HSD173PUW1-A01 LCD screen. We strive to ensure your satisfaction with our products. Please review the following return policy guidelines:
Contact Us for Returns: Prior communication is essential before initiating any return process. Please reach out to us in advance to facilitate a smooth return experience.
Obtain Return Merchandise Authorization (RMA#): A Return Merchandise Authorization number (RMA#) is mandatory for all refund or return requests. Items returned without an RMA number will not be accepted.
Dead on Arrival (DOA) or Shipping Damage: If you receive a DOA or a shipping-damaged item, please notify us within 7 days of receipt for prompt assistance.
Restocking Fee: A 20% restocking fee will apply to all non-defective returns, parts that remain unused, parts that are not needed, and incorrectly ordered parts.
Return Shipping Responsibility: Customers are responsible for covering all return shipping charges under all circumstances.
Non-Refundable Shipping Fee: The shipping fee is non-refundable for all return shipments, including defective returns, unnecessary parts, and incorrectly ordered parts.
Wrong Item Ordered: If you mistakenly order the wrong items, you will be responsible for paying the two-way shipping fee.
Proper Packing Instructions: To ensure the safe return of the LCD screen, please utilize our recommended packing methods such as bubble wrap, rope, sponge form, or similar protective measures. Avoid using envelopes or fragile boxes, as LCD screens are delicate and require secure packaging.

HSD173PUW1-A01 LCD Panel FAQ :

Q: What happen if the HSD173PUW1-A01 I receive can't work ?

A: The HSD173PUW1-A01 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can You declare my order of lcd panel HSD173PUW1-A01 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of HSD173PUW1-A01 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
