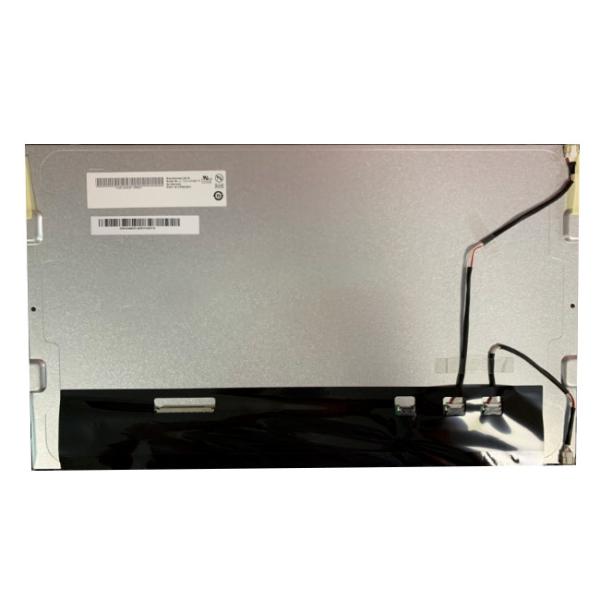

LVDS 15.6 LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display
LVDS 15.6 LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display
Specifications
Brand Name :
AUO
Model Number :
G156HAN04.0
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
G156HAN04.0
Screen Size :
15.6 inch
Pixel Number :
1920(RGB)×1080 (FHD) 141PPI
Active Area(mm) :
344.16 × 193.59 (H×V)
Outline(mm) :
363.8 × 215.9 × 10.82 (H×V×D)
Bezel Area(mm) :
347.06 × 196.49 (H×V)
Mass :
850g (Max.)
Used for :
Industrial / Outdoor High Brightness
Description

15.6" LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display

G156HAN04.0 Product details :

AUO LCD SCREEN G156HAN04.0
Panel Brand AUO
Panel Model G156HAN04.0
Panel Size 15.6 inches
Panel Type a-Si TFT-LCD , LCM
Resolution 1920(RGB)×1080(FHD) 141PPI
Pixel Format RGB Vertical Stripe
Display Area 344.16(W)×193.59(H) mm
Bezel Opening 347.06(W)×196.49(H) mm
Outline Size 363.8(W)×215.9(H)×10.82(D) mm
Surface Matte, Hard coating (3H)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmission)
Viewing Angle 89/89/89/89 (Typ.) (CR≥10)
Display Mode AHVA, Normally Black, Transmissive
Response Time 25 (Typ.)(Tr+Td) ms
Display Colors 16.7M , 72% NTSC
Lamp Type WLED , 50K hours, with LED driver
Frequency 60Hz
Panel Weight 850g (Max.)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins , terminal
Input Voltage 3.3V (Typ.)
Environment Working: -30 ~ 70 °C ; Storage: -30 ~ 70 °C
15.6" LCD Panel G156HAN04.0 1920×1080 RGB Vertical Stripe Industrial LCD Screen Display

G156HAN04.0 Our service:

1. We ship within 2~5days as soon as possible；

2. We support sample service, MOQ = 1；

3. We have strong R & D and production capabilities and have sufficient inventory；

4. We will innovate and develop new products every month；

5. We are OEM / ODM；

6. We are at your service 24 hours. Product quality issues can be returned at any time；

7. We ship your products with the fastest and best logistics；

G156HAN04.0 Shipping and Package :

LVDS 15.6

G156HAN04.0 Shipment:

1.- We can ship the products all the world.

2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.

3.- The item will be sent out with 3days after receiving the payment.

4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.

5.- You can track the situation of your product on website after they are shipped out

G156HAN04.0 Return & Replacement/Exchange policy:

1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.

2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.

3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.

G156HAN04.0 FAQ :

Q: Can you give me a discount if I need a large quantity of G156HAN04.0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of G156HAN04.0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of G156HAN04.0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of G156HAN04.0 ?

A: we will give you tracking number then you can trace your order from website.
