Specifications
Brand Name :
AUO
Model Number :
T260XW02 VS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
T260XW02 VS
Screen Size :
26.0 inch
Pixel Number :
1366(RGB)×768, WXGA, 60PPI
Active Area(mm) :
575.769(W)×323.712(H) mm
Bezel Opening :
580.8(W)×328.8(H) mm
Display Colors :
16.7M 72% NTSC
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Used for :
TV Sets
Description

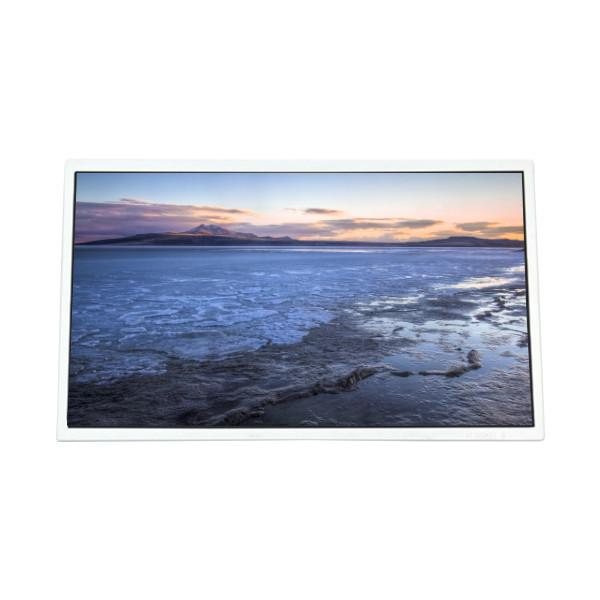

T260XW02 VS 30 Pins 26 Inch LCD Screen 1366*768 for AUO

T260XW02 VS Product details :

AUO LCD SCREEN T260XW02 VS
Panel Brand AUO
Panel Model T260XW02 VS
Panel Size 26.0 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1366(RGB)×768, WXGA, 60PPI
Pixel Format RGB Vertical Stripe
Display Area 575.769(W)×323.712(H) mm
Bezel Opening 580.8(W)×328.8(H) mm
Outline Size 626(W)×373(H) ×47.4(D) mm
Surface Antiglare (Haze 11%), Hard coating (3H)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode VA, Normally Black, Transmissive
Response Time 6.5 (Typ.)(G to G)
Display Colors 16.7M 72% NTSC
Lamp Type 4 pcs CCFL , 60K hours
Frequency 60Hz
Designed For TV Sets
Touch Screen Without
Panel Weight 3.72Kgs (Typ.)
Signal Interface LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
T260XW02 VS 30 Pins 26 Inch LCD Screen 1366*768 for AUO

T260XW02 VS NOTE:


1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.

2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.

•3-->The LCD model name in your hand, such as: LM140LF1L02

•4-->Your notebook computer name, such as: brand,specific model

•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!

T260XW02 VS Payment:

1.- Please make sure your payment account is available before you bid the item.

2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.

3.- If you have any special request about the details of item, please leave a note in your order.

T260XW02 VS Shipment:

When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

T260XW02 VS Guarantee:

1.All items will be strictly tested before shipping.

2.Warranty is 90 days.

T260XW02 VS Note:

1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!

2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!

3: After receiving the product, if there is a problem, please contact customer service to solve it!

T260XW02 VS FAQ:

Q: Can you tested the T260XW02 VS before shipping ?

A: Of course , our lcd panel T260XW02 VS was Strictly tested before shipping.

Q: How to order AUO T260XW02 VS ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel T260XW02 VS I received can't work ?

A: AUO T260XW02 VS was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

T260XW02 VS Shippment & Packing

T260XW02 VS 30 Pins 26 Inch LCD Screen 1366*768 for AUO
