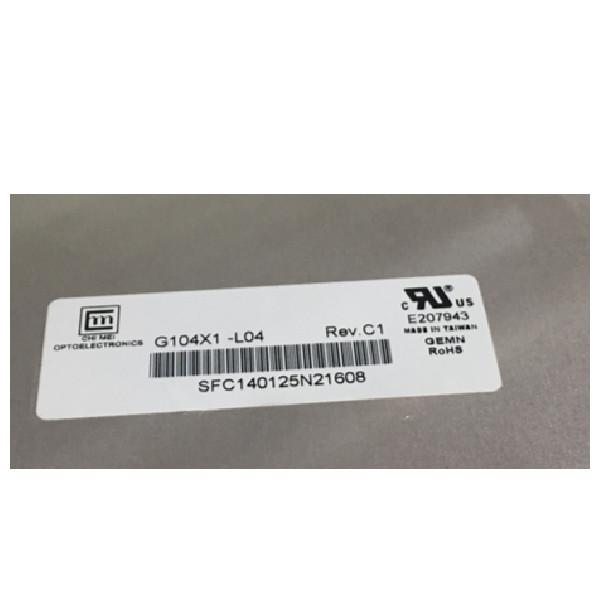

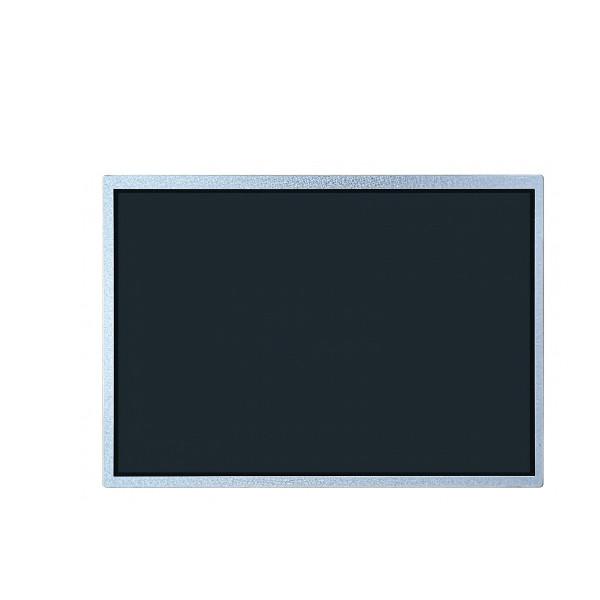

INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS
Specifications
Brand Name :
Innolux
Model Number :
G104X1-L04
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
brand :
Innolux
Model Name :
G104X1-L04
screen size :
10.4 inch
Resolution :
1024(RGB)×768, XGA, 123PPI
Display size :
210.4(W)×157.8(H) mm
physical dimension :
225.5(W)×176.3(H) ×9.2(D) mm
Bezel Opening :
215.4(W)×161.8(H) mm
Brightness(cd/m²) :
500 cd/m² (Typ.)
Contrast :
1000:1 (Typ.) (TM)
Apply to :
Industrial
Description

INNOLUX G104X1-L04 10.4 inch TFT LCD display panels 1024*768 IPS LVDS

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

Innolux LCD SCREEN G104X1-L04
Panel Brand Innolux
Panel Model G104X1-L04
Panel Size 10.4"
Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768, XGA, 123PPI
Pixel Format RGB Vertical Stripe
Display Area 210.4(W)×157.8(H) mm
Bezel Opening 215.4(W)×161.8(H) mm
Outline Size 225.5(W)×176.3(H) ×9.2(D) mm
Surface Antiglare,
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)
Display Mode Super MVA, Normally Black, Transmissive
Response Time 14/11 (Typ.)(Tr/Td)
Display Colors 262K/16.2M 55% NTSC
Lamp Type WLED , 50K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 430±50g
Signal Interface LVDS (1 ch, 6/8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
INNOLUX G104X1-L04 10.4 inch TFT LCD display panels 1024*768 IPS LVDS

Why Choose Us :

According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !

Shipping and Package :

INNOLUX G104X1-L04 10.4 Inch TFT LCD Display Panels 1024*768 IPS LVDS

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Can You declare my order of G104X1-L04 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of G104X1-L04 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of G104X1-L04 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of G104X1-L04 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

We are one of the professional and experienced suppliers of INNOLUX G104X1-L04 10.4 inch TFT LCD display panels 1024*768 IPS LVDS , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
